Equipment list
No. | Name | Qty | Notes | |
1000LBrewery Equipment | ||||
01 | Mash System | 10BBL Mash Tun | 1set | SUS304, 4 vessels+20BBL hot water tank, milled sieve plate, heating by steam, plate heat ex-changer, food grade stainless steel pipline |
10BBL Lauter tank | 1set | |||
10BBL BoilingTank | 1set | |||
10BBL Whirlpool Tank | 1set | |||
Hot water tank 20BBL | 1set | |||
Pump | 4sets | |||
Pipe line and Platform | 1set | |||
Plate heat exchanger | 1set | |||
02 | Fermentation System | Fermenters 10BBL | 12set | 10BBL fermenters |
Bright beer tank 10BBL | 4sets | |||
03 | Refrigerating System | Ice water tank 20BBL | 1set | 15 HP chiller, 20BBL Ice water tank, ice water pump |
Cold water tank20BBL | 1set | |||
Chiller 15HP | 1set | |||
Pump | 2sets | |||
04 | CIP System | 100L | 1set | Disinfection and alkali tank |
05 | Control system | Control carbinet | 1set | SUS 304 |

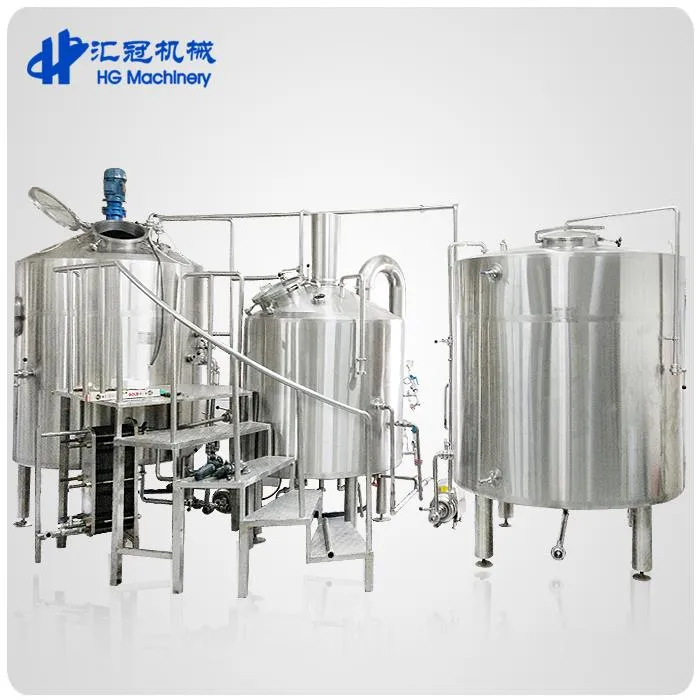

Mash system
Mash tank: Outline size:φ1460×2400mm Gross capacity:12BBL, Useful capacity:10BBL Equip with blender; Power: 1.5KW Output speed:1-29RPM( frequency control) Heat exchange area: 1.2㎡ Weight:0.45T | Lauter tank: Outline size:φ1460×2400mm Gross capacity:12BBL, Useful capacity:10BBL Equip with raker, power:1.5kw Milled sieve plate, load of sieve: 250kg/㎡ Filter gap 0.7mm Weight:0.45T |
Boiling tank: Outline size:φ1460×2400mm Gross capacity:12BBL, Useful capacity:10BBL Heat exchange area: 1.2㎡(steam heating) The heating rate: 1.5℃/min Weight:0.45T | Whirlpool tank: Outline size:φ1460×2400mm Gross capacity:12BBL, Useful capacity:10BBL Equip with tangential inlet, DN65 Oblique bottom: angle is 1.5° Weight:0.45T |
Tanks show:
Fermentation tanks:
12 sets
Outline size:φ1260x2800mm
Gross capacity:12BBL, Useful capacity: 10BBL
Heat exchange area: 3m2
Equipped with: 60° conical design
Fermentation tank pressure: test pressure 0.3Mpa.Working pressure 0.15Mpa.
Stability of equipment:
The equipment operates stably and extremely low failure rate.
So the service life of the equipment is twice that of ordinary equipment.
Our company:
Introducing European advanced technology and innovate on the technology, HG company becomes leader in domestic liquid package machinery industry and the most professional supplier for liquid production and package turnkey project.HG company has got ISO 9000:2015 quality certificate and is run according to ISO management. Being technology innovation-oriented, HG company produces six series products including beer production line, distilled alcohol production line, CSD production line, water production line, juice production line and food processing equipment. She succeeds in offering high quality and excellent service to Tsingtao beer, Yanjing beer and Snow beer and exporting to more than 60 countries in Europe, America, Africa, Australia and Asia.
