500L turnkey insulated used stainless steel brewery equipment Generally, a whole set of 500L brewery system is consisted of 6 parts which are separately milling system, brewhouse system, fermentation system, cooling system, CIP system and control system. For more standard info, please read on....
Chat Now

Product Details

500L turnkey insulated used stainless steel brewery equipment

beer machine home brewery

Generally, a whole set of 500L brewery system is consisted of 6 parts which are separately milling system, brewhouse system, fermentation system, cooling system, CIP system and control system. For more standard info, please read on.


Milling system:

- Includes explosion proof motor

- Designed specifically for malt milling

- 100% dust tight

- Heavy duty construction

- Stainless steel material

- Motor starter with thermal overload


Brewhouse system:

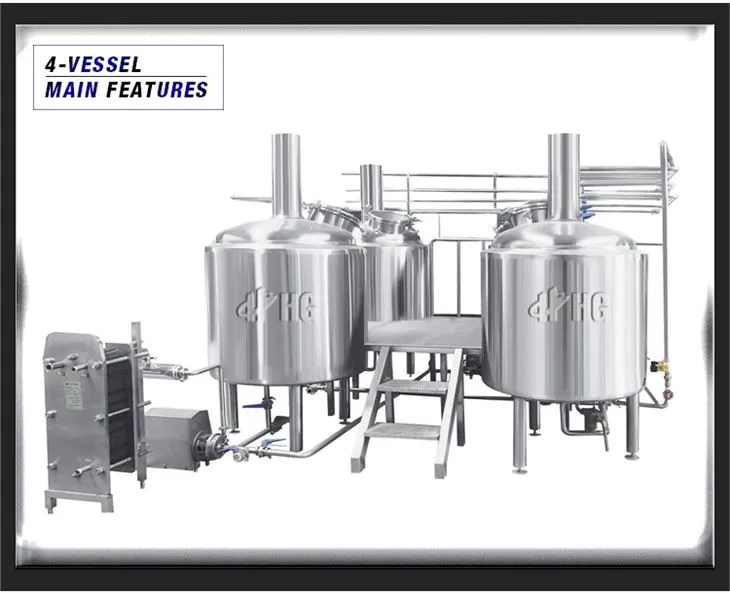

- 2-vessel, 3-vessel, 4-vessel construction based on requests

- Food grade stainless steel 304 as material

- Upper and lower steam jacket

- Stainless steel grist hydrator assembled

- Interior LED lamp

- Top manway(tempered glass)

- Multiple wort drain outlets

- Side manway for discharging spent grain automatically

- SS CIP spray ball with 360°of coverage

- Skid-proof working platform

- CIP spray nozzles under the false bottom to clean the spent grain

- VFD speed control pumps

- Automatic variable speed rake system and blender system

- Fully insulated with PU


Fermentation system:

- Stainless steel 304 as material

- 100% TIG welded and argon protected

- Design pressure: 3.0 bar   working pressure: 1.5-2 bar

- Vacuum valve & pressure relief valve

- Sample valve

- Dry hopping port

- CIP arm and rotary spray ball 360°of coverage

- Side manhole

- Interior shell: thickness 3mm 11 gauge

- Dual zone cooling jacket with glycol inlet and outlet

- Interior with 2B treatment and esteror finished bright polish, sanitary surface


Control system:

- Fully automated with PLC and oversized touchable screen display

- Can also be semi automatic system which depends on budget

- Integrated design with all components housing in control  box

- Automatic temperature control (brewhouse and fermentation tank)

- With world renowned brand of components assembled

500L beer brewing equipment1
