Features：
Microbrewery / commercial brewery equipment is a brewery for restaurants, commecial and industrial breweries which consist of the industrial wort brew machine and a fully equipped set of the professional beer fermentation tanks with a nominal capacity from 500 up to 100000 liters. It's a medium-size and big-size craft brewery intended mainly for restaurants and pubs with their own beer production.

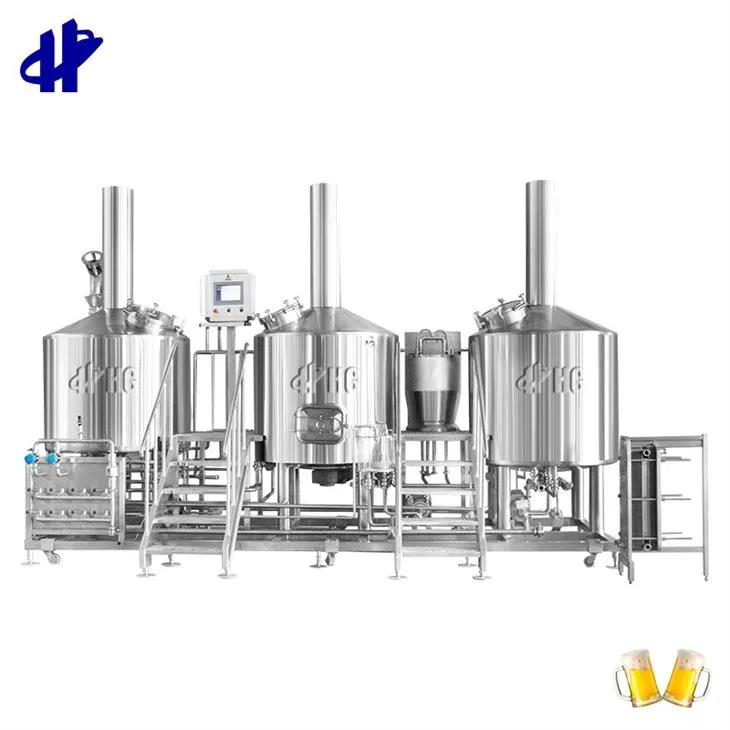

The brewhouse is designed to conduct the brewing process of mashing, lautering, boiling and whirlpooling. When the capacity exceeds 1000L, three vessel brewhouse is preferred by increasing brewmasters. Firstly, the mash tun, lauter tun, brew kettle and whirlpool tun can be combined variously according to different intention. Secondly, the brewmaster can brew 2 batches at the same time and the total capacity will be up to 3-4 batches per day, which means the three vessel brewhouse owns a bigger expanding capacity. These improvements guarantee the brewmaster make full use of the brewhouse equipment and bring comparable profits to the owner.
Structure:
Staircases and platform combine the vessels in a compact unit, perforated and sectional construction of the walk-on surface ensures protection against slipping;Automated lautering, automated water mixing.
High quality insulation effect: Insulation thickness: 80mm
Beautiful weld and polish: all argon gas protection welding. Polishing precision up to Ra0.6µm.
Cooling Unit: insulated glycol water tank with or without copper coil for glycol liquid holding and mixing; efficiency chillers or refrigerators with fryonto supply cooling energy; sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger; all pipes, fitting, insulation materials are included
Controlling Unit: electrical controlling cabinet with temperature, on-off controlling for brewhouse; electrical controlling cabinet with temperature, on-off controlling for cooling parts; temperature controller, thermocouple, solenoid valves etc are included; PLC with touch screen panel for special request
Product parameters：
Item | Production capacity | Volume in US Gallon | Heating area | Tank diameter | Height |
HG-100 | 100L/day | 26US Gallon | 0.25m2 | 650mm | 2000mm |
HG-200 | 200L/day | 53US Gallon | 0.25m2 | 850mm | 2200mm |
HG-300 | 300L/day | 79US Gallon | 0.3m2 | 950mm | 2500mm |
HG-500 | 500L/day | 132US Gallon | 0.5m2 | 1160mm | 2800mm |
HG-1000 | 1000L/day | 264US Gallon | 1.0m2 | 1360mm | 3000mm |
HG-2000 | 2000L/day | 528US Gallon | 2.0m2 | 1760mm | 3150mm |
HG-3000 | 3000L/day | 792US Gallon | 3.0m2 | 1860mm | 3800mm |
HG-5000 | 5000L/day | 1320US Gallon | 5.0m2 | 2260mm | 4400mm |
Our projects:
Our certificates:
HG company has got ISO 9000:2015 quality certificate and is run according to ISO management.
Our team:
We can provide you with the complete and satisfied beer recipe. Now, we are cooperating with Shandong Light Industry Design Institute to do reasearch and develop the new technologies. So, we can communicate and test the latest research results and beer recipes.
Our factory：
Shandong HG Machinery Co.,Ltd. always adhere to the “customer satisfaction”as the purpose,casting”wisdom,top quality”spirit,adhere to market-oriented,science and technology a the first,quality is life,service is the core of business philosophy,To provide customers with high quality products and excellent service.
Package:
The transportation department will come up with a checklist and put them in a metal box, and you will receive a checklist of everything we ship. All tank openings have plastic covers to prevent dust; The tanks on the hanger must be bolted. The bracket and tank will be fixed in the container with bolts and steel wire. After shipment, we will have complete loading pictures and check list, and provide pictures of all parts.
