Features：

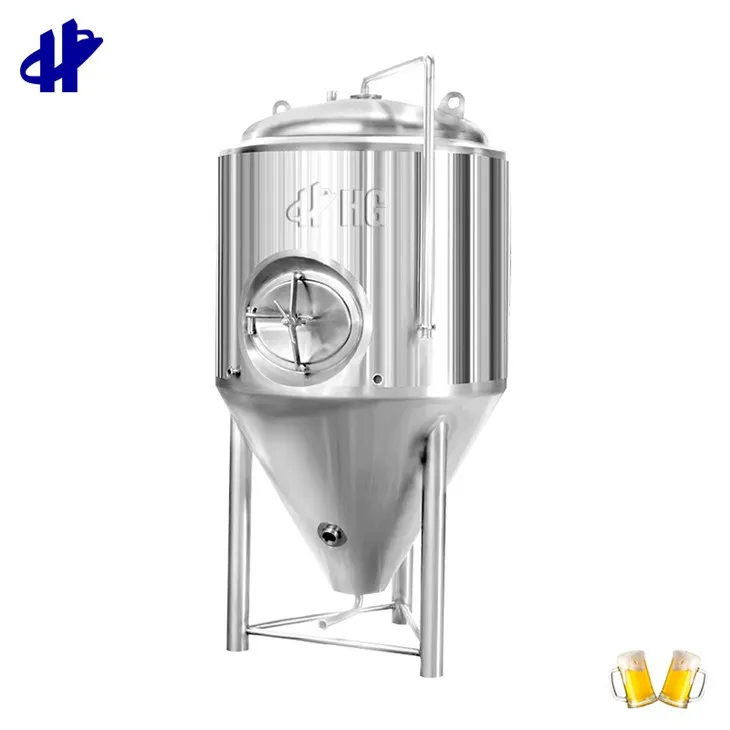

These Unitank Industrial Fermenter was sent to UK brewing market, fermenter is also called CCT (Cylindrical Conical Tank), FV (Fermentation Vessel), primary fermenter or unitank as they are used both for fermenting and sotage. Micet stainless steel fermenter can be individually temperature controlled through glycol jackets and are fully equipped with accessories such as pressure relief valve, CIP cleaning ball, sample valve, manhole,etc Fermenting is the process during which the yeast transforms the wort into beer. Bright beer takes place after fermenting and mainly function is to make the beer more clear and store a longer time. Industrial Fermenter can be top manway or side manway according to different client requirement for lager or ale beer brewing.
| 1. | Total volume:5300L, Effective volume:4000L. |
| 2. | Material: SUS 304. Inside TH:3mm ,Outside TH:2mm, |
| 3. | Insulation material: Polyurethane (PU) foam, thickness: 80mm. |
| 4. | Manhole: Side manhole; |
| 5. | Design pressure 3bar, Working pressure: 2bar; |
| 6. | Bottom design: 60 degree cone for easy to exist yeast. |
| 7. | Cooling method: Dimple cooling jacket, Double phase cooling area: 5.5 m2; Height:4m. |
| 8. | Cleaning system: Fixed-round rotary cleaning ball. |
| 9. | Control system: PT100 DN10, temperature control; |
| 10. | With: CIP arm with spray ball, racking arm, pressure gauge, safety valve, PRV spunding, hop adding port,carbonation stone, sampling valve, breath valve, drain valve,etc. |
Fermenter Details:
All Construction is from SUS 304 food grade stainless steel, all pipes are SUS304
All signs & wording in English
All tanks to be supplied with Data Plates including Test Data & Serial Number
All tanks will be tested and inspected in the NDT room after construction & Quality Control Checks
All jackets will be tested using water pressure testing, testing pressure: 0.4Mpa (4 Bar) & working pressure:0.2Mpa (2Bar)
All tanks will be pressure tested for 48hours before leaving the MICET factory;
All the welds are full TIG welded by water spray method to ensure uniform weld pattern with full pickling & passivation
All tanks are mirror polishing inside, to be Ra 0.4um.
All Gaskets are manufactured with EPDM
Our certificates:
HG company has got ISO 9000:2015 quality certificate and is run according to ISO management.
Our team:
We can provide you with the complete and satisfied beer recipe. Now, we are cooperating with Shandong Light Industry Design Institute to do reasearch and develop the new technologies. So, we can communicate and test the latest research results and beer recipes.
Our factory：
Shandong HG Machinery Co.,Ltd. always adhere to the “customer satisfaction”as the purpose,casting”wisdom,top quality”spirit,adhere to market-oriented,science and technology a the first,quality is life,service is the core of business philosophy,To provide customers with high quality products and excellent service.
Package:
The transportation department will come up with a checklist and put them in a metal box, and you will receive a checklist of everything we ship. All tank openings have plastic covers to prevent dust; The tanks on the hanger must be bolted. The bracket and tank will be fixed in the container with bolts and steel wire. After shipment, we will have complete loading pictures and check list, and provide pictures of all parts.
