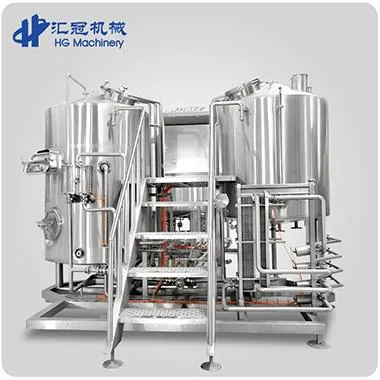

Fresh 500L Micro Restaurant Beer Brewery Equipment

Fresh 500L Micro Restaurant Beer Brewery Equipment

We have specialized in designing and manufacturing brewery equipments for over 10 years, whose cost is more competitive than your local suppliers. We are able to install and maintain equipments in your brewery. Our great technical supporting and accessory supply is also permanent available.
Chat Now

Product Details

Equipment Introduction




    美国展会图片

Inner-Jacket(SUS304) thickness: 3.0mm

External-Jacket(SUS 304) thickness: 2.0mm

Seal head thickness: 3.0mm.

Milled sieve plate, Filter gap 0.7mm

Insulation layer: Rock wool material Insulation thickness: 80mm

Inner polishing accuracy: Ra0.4µm

Equipped with raker; Power: 0.55KW;

With condensed water collecting ring and drain pipe

Top manhole door: Diameter: 400mm with safety sight-glass, atmospheric pressure manhole design

Temperature way: temperature probe PT100, temperature transmitting. Temperature control screen display

CIP cleaning device: Material: SUS 304

Flushing device: bottom mounted, equipped with special nozzle and combination check valve





    美国展会图片1

Dimple jacket plate(SUS 304) thickness: 3.0mm

Heating way: steam heating

Heat exchange area: 1㎡, The heating rate: 1.5℃/min

The operation pressure of jacket: 3bar

The design pressure of jacket: 5bar

Insulation layer: Rock wool material, Insulation thickness: 80mm

Inner polishing accuracy: Ra0.4µm

With tangential inlet, DN40,

Oblique bottom: angle is 2°

Top manhole door: Diameter: 400mm with safety sight-glass, atmospheric pressure manhole design

Temperature way: temperature probe PT100, temperature transmitting. Temperature control screen display

CIP cleaning device: Material: SUS 304

Outsourcing surface: Weld polishing processing

check the tank        IMG_4225




Cooling way: Dimple jacket plate;

Cooling media: glycol water or alcohol water.

Material: Inner (SUS304)thickness: 3.0mm;

External-Jacket(SUS304) thickness: 2.0mm;

Oval head cone bottom, thickness: 3.0mm.

Insulation: Polyurethane-thickness: 100mm.

Equipped with: 60° conical design

Sampling method: 1 piece of aseptic sampling valve.

Side manhole: 330*450mm

Machine polishing accuracy: Ra0.4µm;

Fermentation tank pressure: test pressure 0.3Mpa.

Working pressure 0.15Mpa.

Cleaning System: CIP washing unit: Comprehensive cleaning.









Supplementary Part








Advantages of the equipment


1.Quality Certificates:The quality can be guaranteed.


2.The Best Quality of Auxiliary Machines and Accessories:More durable and stable.


3.Weld and Polish Technology:Beautiful appearance and excellent quality.


4.Best raw materials:304 stainless steel.


5.Perfect after-sales service:Let you rest assured.

1Guarantee:

We guarantee the quality of the electrical elements within one year and tanks body within 1 years. If the electrical elements go wrong without artificial factors within one year, we will freely provide them or maintain them for you. After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support you.

2Installation and training:

We provide training if the technical engineers of the buyer come in our company. If the buyer needs our engineer to install and train at buyer's spot, the buyer should pay for visa cost, air ticket, and accommodation and salary, etc.

6.The iron frame packing makes the equipment safer in transportation.









QQ图片20181218084300

Company Introduction

        Introducing European advanced technology and innovate on the technology, HG company becomes leader in domestic liquid package machinery industry and the most professional supplier for liquid production and package turnkey project.HG company has got ISO 9000:2015 quality certificate and is run according to ISO management. Being technology innovation-oriented, HG company produces six series products including beer production line, distilled alcohol production line, CSD production line, water production line, juice production line and food processing equipment. She succeeds in offering high quality and excellent service to Tsingtao beer, Yanjing beer and Snow beer and exporting to more than 60 countries in Europe, America, Africa, Australia and Asia.

        With the purpose of customer’s satisfaction and the management of “convergence of wisdom, quality assurance”, HG company offers more high quality products and excellent service, and helps the customer to establish more value.
