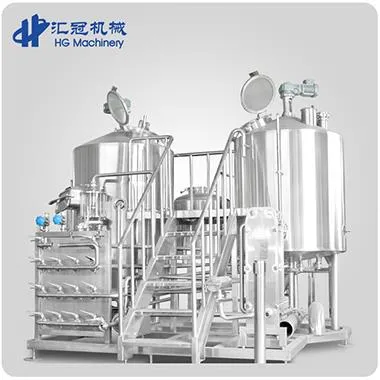

Used Brewery Equipment For Sale 1000L 2000L Commercial Beer Brewing Equipment

Used Brewery Equipment For Sale 1000L 2000L Commercial Beer Brewing Equipment

Shandong HG Machinery Co., Ltd. specializes in designing, researching and manufacturing fully automatic and semi automatic beer, beverage and the other liquid production and filling line. Introducing European advanced technology and innovate on the technology, HG company becomes leader in domestic liquid package machinery industry and the most professional supplier for liquid production and package turnkey project.

Product Description

100L-1000L Brewery Equipment Supplier --------------Shandong HG machinery company

Shandong HG Engineering Equipment Co., Ltd. specializes in designing, researching and manufacturing fully automatic and semi automatic beer, beverage and the other liquid production and filling line. Introducing European advanced technology and innovate on the technology, HG company becomes leader in domestic liquid package machinery industry and the most professional supplier for liquid production and package turnkey project.

Specification

Grist miller	1 set 300-800kg/h Material: Stainless steel 304 Power: 3.5KW 2 roller type, designed specifically for malt mill Accessories: Contains motor, motor mounts, rolls, shafts, bearings gear boxes, pulley, belts,etc.
Mash tun Lauter tun Boiling/ whirlpool tank	Gross capacity: 1450L Useful capacity:1000L Outline size: φ1360X3000mm Heat way: steam heating Heat exchanger area: 1.5m2 Inner- jacket(SUS304)thickness: 3.0mm External-Jacket(SUS 304) thickness:2.0mm Seal head thickness: 3.0mm. Insulation layer: Rock wool material Insulation thickness: 100mm Machine polishing accuracy: Ra0.4µm

Fermenters		Gross capacity:1320L Useful capacity: 1000L Outline size: φ1260X2500mm Cooling way: Dimple jacket plate Heat exchanger area:1.8㎡ Cooling media: glycol water or alcohol water Material: Inner (SUS304)thickness: 3.0mm External-Jacket(SUS304) thickness: 2.0mm Oval head cone bottom, thickness: 3.0mm Insulation: Polyurethane-thickness: 100mm Equipped with: 60° conical design Sampling method: 1 piece of aseptic sampling valve. Side manhole: 350*300mm Machine polishing accuracy: Ra0.4µm
Chiller		1 sets Capacity: 10HP Working power: 4Kw/unit Medium: Environmental protection refrigerants R134a Using the latest evaporator condenser integrated, import compressor.
Boiler		Rated evaporation: 100 kg/h Rated working pressure: 0.7Mpa saturated steam temperature: 152℃ water pump power:0.36Kw; Steam pipe diameter: DN25 Drainage pipe diameter: DN25 Water inlet diameter: DN15 With soft water equipment
Plate heat exchanger		BR0.1/4 10㎡ Function: Wort cooling Stainless steel material Design/Test Pressure: 10bar/13bar Working temperature:170° Sealing material: nitrile-butadiene rubber Clamp connection: with clamp connector Wort outlet: with bimetallic thermometer (0-100℃) Cooling medium: with 2 bimetallic thermometers in wort inlet (water from 0-100℃, glycol water from -50 ~ 50℃) Double-section cooling: (water-cooled + glycol cold)

Certifications

Detailed Images

Machine Parts

Name: Raker

Brand: HG

Original: China

Fully-automatic raker is easy to operate. It can lift and down by control system

Main Features

Name: Milling sieve plate
Brand: HG
Original: China
Milled sieve: filter plate gap≤0.7mm.

Machine Parts

Name: Welding
Brand: HG
Original: China
Our welders has many years experience in welding and they adopt the most popular welding way--T.I.G welding. This welding way make sure the joint more beautiful and fastness.

Main Features

Name: Polishing
Brand: HG
Original: China
Our product is used the most advance polishing technology--sand polish. The polishing precision to Ra0.4µm. The surface is polished for 3 times.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	LCL
Weight	Depend on the equipment
Packaging Details	The normal package is iron box. If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	20'GP or 40'GP
Weight	Depend on the equipment
Packaging Details	The normal package is iron box. If container is too tigher,we will use pe film for packing or pack it according to customers special request.

FAQ

1.Q: Are you a manufacturer?
A: We are the manufacturer of beer brewing equipment for 10 years.

2.Q: Can I have the customized products?
A: Yes, we can design and manufacture according to our client's requirements.

3.Q: Can you guarantee your quality?
A: All of our products is applied with CE certificate. Equipment is made of high quality of SUS304/316. Inspect certificate is available.

4.Q:How about the after sales service?
A: We have the best after sales service and offer the overseasservice. We guarantee the quality of the electrical elements within one year and tank within 3 years. If the electrical elements go wrong without artificial factors within one year, we will freely provide them or maintain them for you.

5.Q: Which export port you use?
A: Commonly we will use Qingdao port, sometime, it can appoint as you like.
