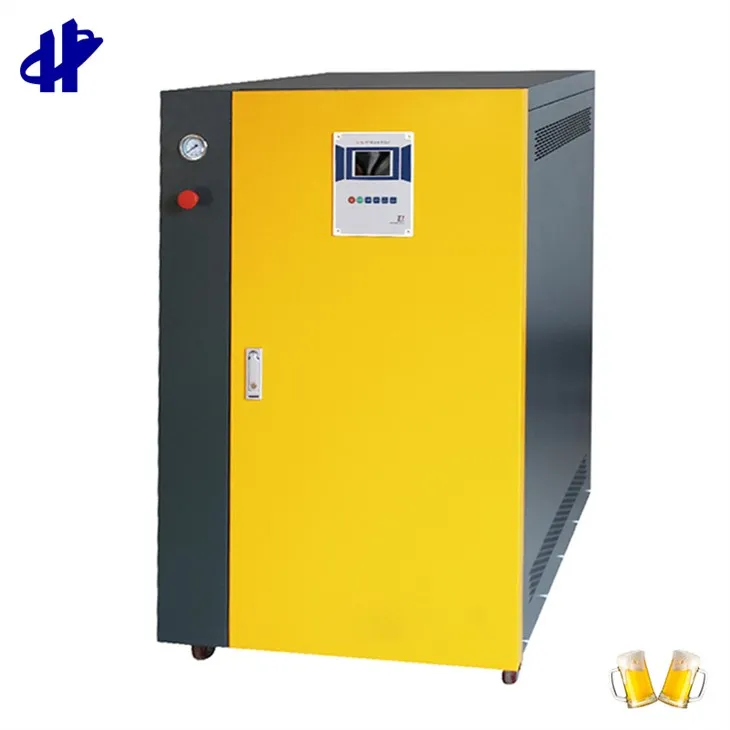

It is newly designed according to the national JB/T10393 standard. Various specifications of 12KW-350KW are suitable for your different purposes and different needs
ITEM/TYPE | LDR 0.013 -0.7 | LDR 0.017 -0.7 | WDR 0.026 -0.7 | WDR 0.034 -0.7 | WDR 0.06-0.7 | New：WDR0.1-0.7 Old：LDR0.1-0.7 | ||||||||
Rated heating power(Kw) | 9kw | 12kw | 18kw | 24kw | 30kw | 36kw | 45kw | 54kw | 60kw | 72kw | ||||
Rated steam output(kg/h) | 13kg/h | 17kg/h | 26kg/h | 34kg/h | 43kg/h | 52kg/h | 65kg/h | 78kg/h | 86kg/h | 100kg/h | ||||
Rated current(A) | 16A | 20.5A | 31A | 41A | 46A | 56.5A | 70.9A | 85.2A | 92A | 113A | ||||
Working voltage | 220V/50Hz One-phase tree-wire Or 380V/50Hz Three-phase five-wire
| 380V/50Hz Three-phase five-wire | ||||||||||||
Heating control | ON-OFF | |||||||||||||
Rated working pressure(Mpa) | 0.7MPA | |||||||||||||
Different pressure grade and temperature are available according to customer’s requirement.
This data is only for reference.
The boiler room design is subject to the drawings.
