1000l Brewery Equipment
Model NO.: HG-PJSB-1000L
Heating Way: Steam Jacket Heating/Electricl Heating and Direct heating for your optional
Transport Package: Angle Iron and Frame
Origin: Shandong, China
Processing Material: SUS304/SUS316L/Red Copper

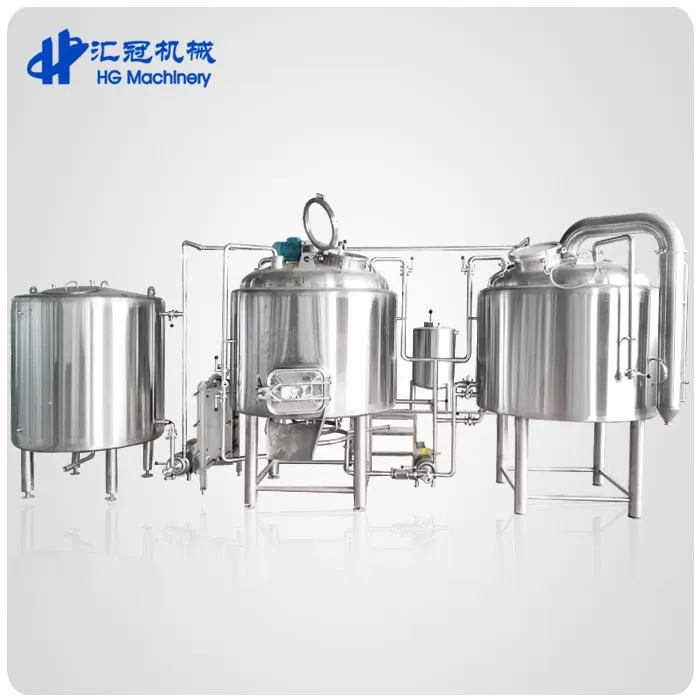

This 1000l brewery equipment is 2 vessel brewhouse (mash/lauter tank+kettle/whirlpool tank)with a 1000 liters hot water tank. It is the most suitable for home brewing or microbrewery. It is steam heating way, we also have electric heating and direct heating way for your option.The capacity is bigger, the vessels is more. It is just in order to reduce the brewing time, improve the working efficiency. All tanks are made by SUS 304 materials. About the sanitary stainless steel 304, we use 3 mm interior shell and 2 mm exterior shell. They are much firmer than others.
Heating way: steam heating
Heat exchange area:1.5m2
Cylinder(Oval, SUS304),thickness: 3.0mm.
Decoration chimney: 600mm
Equipped with: Blender; Power: 0.75KW;
Wort pipe and the washing pipe is separated device.
Top manhole door: Diameter: 400mm; atmospheric pressure manhole design.
Liquid level display device: sight glass & liquid level gauge.
CIP cleaning device: Material: SUS 304;
Cooling way: Ice water belt cooling;
Heat exchange area:2.6m2
Cooling media: glycol water or alcohol water.
Material: Inner (SUS304)thickness: 3.0mm;
External-Jacket(SUS304) thickness: 2.0mm;
Oval head cone bottom, thickness: 3.0mm.
Insulation: Polyurethane-thickness: 80mm.
Equipped with: Cone 60°
Sampling method: 1 piece of sampling valve.
Fermentation tank pressure: Design pressure 0.3MPa; Working pressure 0.15Mpa.
Cleaning System: CIP washing unit: Comprehensive cleaning.
Shandong HG Machinery Co., Ltd. specializes in designing, researching and manufacturing beer brewery equipment, beer bottling and canning line and the subsidiary equipment. Introducing European advanced technology and innovating on the technology, HG company becomes the leader in domestic beer industry and the most professional supplier for liquid production and package turnkey project.
HG company is located in Hi-tech Development Zone, Jinan, Shandong province, near Jinan international airport and Qingdao port, so it is convenient for land and sea transport. There are 80 employees, including 20engineers and after sales engineers, the strongest after sales team in China, who are p
