Features：
Beer bottling machines have become increasingly popular in recent years due to their efficiency and ability to produce large quantities of beer quickly. These machines are essential for breweries of all sizes, providing a streamlined and seamless process that ensures the highest quality product.
Using a beer bottling machine eliminates the need for manual labor and greatly reduces the amount of time it takes to produce large quantities of beer. This means that breweries can focus on brewing new and exciting flavors, experimenting with different ingredients and creating a diverse range of beers for consumers to enjoy.
Beer bottling machines also ensure consistency in the brewing process, giving breweries the ability to accurately control the amount of beer that is being produced. This helps to cut down on waste and ensures that all batches of beer are of the same high quality, enhancing the brand reputation and increasing customer loyalty.
Moreover, beer bottling machines are extremely versatile and can be customized to meet the specific needs of brew
In conclusion, beer bottling machines are a vital component of any brewery, providing a fast and efficient way to produce large quantities of beer while maintaining the highest levels of quality and consistency. With their customizable options and versatility, these machines are set to revolutionize the way beer is produced, making it easier and more enjoyable for breweries and beer lovers alike.
Product Details

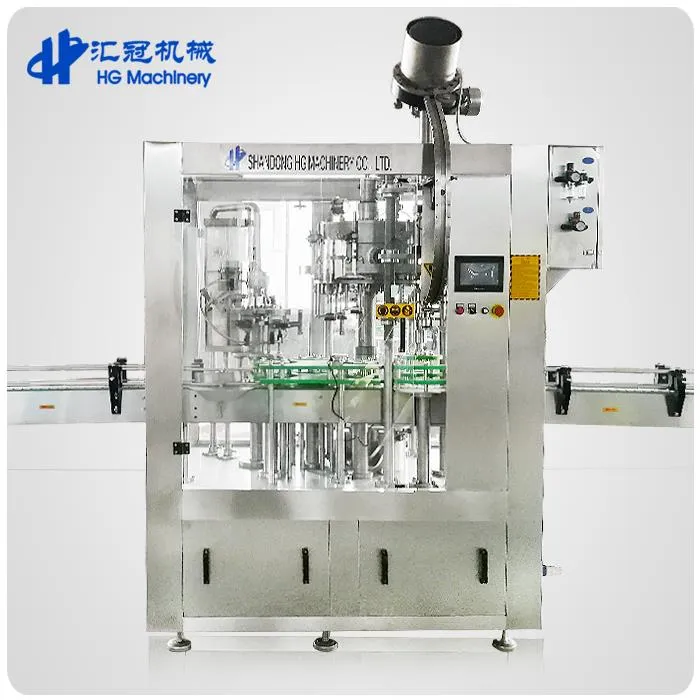

HG-CGF883 type three-in-one beer flushing and filling sealing bottling machine is used for filling and flush sealing of glass bottles. This machine adopts international advanced technology and its design is scientific and reasonable. With beautiful appearance, complete functions, convenient operation and maintenance, and high degree of automation, it is the preferred equipment for small and medium sized beer manufacturers.
(1) The machine has compact structure, perfect control system, convenient operation and high degree of automation
(2) The parts in contact with the materials are made of high-quality stainless steel, there is no dead corner, easy to clean
(3) With CIP cleaning function, touch screen, PLC control. The whole machine adopts protective door structure
(4) With the short-tube secondary vacuum (SVF) and CO2 back pressure filling process, during the entire filling process, the beer does not come in contact with air, so the beer has a very low oxygen content after filling.
Working principle:
Bottle rinsing part: 8 nozzles
This part is composed of lifting device, the main transmission device, the fixed frame, clamp device, distributor, and open clamp cams and over turn cams, etc.
Filling part: 6 nozzles
The filling part is composed of main liquid pipe, rotating cylinder bearing base, filling cylinder fulcrum loop,carbonated beverage and beer tank, filling valve, filling cylinder pipe, control loop device, ascending device,the distributor, height adjusting control, stimulating bubble arm, vacuum system, etc.
Capping part: 3 head
The capping machine is composed of cap holder, capping slideway, capping upper part, capping lower part,elevating part and anti-circling column.
Rinsing heads | 8（diameter：φ595） |
Filling heads | 8（diameter：φ510） |
Capping heads | 3（diameter：φ170） |
Capacity | 1000-1500BPH |
Applicable bottle | Bottle height 150～300mm DiameterΦ50～Φ80mm |
Overall dimension | 1800*1500*2850mm（L×W×H） |
Details:
Our certificates:
HG company has got ISO 9000:2015 quality certificate and is run according to ISO management.
Our team:
We can provide you with the complete and satisfied beer recipe. Now, we are cooperating with Shandong Light Industry Design Institute to do reasearch and develop the new technologies. So, we can communicate and test the latest research results and beer recipes.
Our factory：
Shandong HG Engineering Equipment Co., Ltd. specializes in designing, researching and manufacturing beer brewery equipment, beer bottling and canning line and the subsidiary equipment. Introducing European advanced technology and innovating on the technology, HG company becomes the leader in domestic beer industry and the most professional supplier for liquid production and package turnkey project.
Package:
The transportation department will come up with a checklist and put them in a metal box, and you will receive a checklist of everything we ship. All tank openings have plastic covers to prevent dust; The tanks on the hanger must be bolted. The bracket and tank will be fixed in the container with bolts and steel wire. After shipment, we will have complete loading pictures and check list, and provide pictures of all parts.
