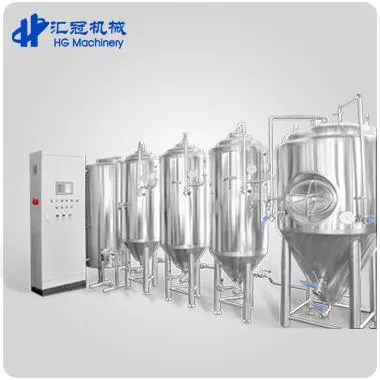

This a 2 vessels +1 hot water tank brewing system+3 fermenters+600L ice water tank
Gross capacity: 430L,
Useful capacity: 300L.
Outline size:
φ960×2100mm
Inner-Jacket(SUS304)thickness: 2.5mm;
External-Jacket(SUS304)thickness: 1.5mm;
Cylinder (Oval,) thickness: 2.5mm.
Insulation layer: Rock wool-thickness: 80mm.
Polishing precision up to: Ra0.6µm.
Equipped with: raker; Power: 0.55KW;
Filter way: Variable frequency pump
suction filtration (pump speed adjustable).
Filter plate gap: ≤1.2mm; filter plate is
detachable.
Grains out way: dry grains out;
Grains outdoor: 430mm*330mm.
Top manhole door: Diameter: 500mm;
atmospheric pressure manhole design.
Outsourcing surface: Weld polishing processing.
Gross capacity: 430L,
Useful capacity: 300L.
Outline size:
Φ960×2100mm
Heating way: electric heating
Inner(SUS304) thickness: 2.5mm;
External-Jacket(SUS304) thickness:1.5mm;
Seal head thickness: 2.5mm.
Insulation layer:
Polyurethane-thickness:80mm.
Polishing precision up to Ra0.6µm.
Heating way: steam heating
Tangent whirlpool mode.
Temperature way: temperature probe PT100, temperature transmitting. Temperature control screen display.
CIP cleaning device: Material: SUS 304; Comprehensive cleaning.
Outsourcing surface: Weld polishing
processing.
Pot body processing technology: All
argon gas protection welding.
Useful capacity: 300L.
Outline size: φ960×2050mm
Heating way: electric heating
Inner(SUS304) thickness: 2.5mm;
External-Jacket(SUS304) thickness:1.5mm;
Seal head thickness: 2.5mm.
Insulation layer:
Polyurethane-thickness: 80mm.
Polishing precision up to Ra0.6µm.
Temperature way: temperature probe PT100,temperature transmitting. Temperature control screen display.
CIP cleaning device: Material: SUS 304; Comprehensive cleaning.
Outsourcing surface: Weld polishing processing.
Pot body processing technology: All
argon gas protection welding.
Useful capacity: 300L.
Outline size: φ860x1900（adjustable）
Cooling way: dimple plate cooling;
Cooling media: glycol water or alcohol water.
Material: Inner (SUS304)thickness: 2.5mm;
External-Jacket(SUS304) thickness: 1.5mm;
Oval head cone bottom, thickness: 2.5mm.
Insulation: Polyurethane-thickness: 80mm.
Equipped with: 60° conical design
Sampling method: 1 piece of aseptic sampling valve.
Top manhole: 330*450mm
Fermentation tank pressure:
Design pressure 0.3MPa;
Working pressure 0.15Mpa.
Cleaning System: CIP washing unit: Comprehensive cleaning.
Foot bolt: Adjust the height of the equipment, easy to install
Gross capacity: 700L,
Useful capacity: 600L.
Outline size:
960*1780mm
Inner-jacket (SUS304) thickness: 2.5mm.
External-jacket (SUS304) thickness: 2.0mm.
Insulation: Polyurethane-thickness 80 mm.
Internal and external plate protection and sand polish on welding seal;
Valves, accessories supporting.
Temperature mode: PT100 temperature probe, temperature transmitting, temperature control panel display.
Feeding method: Ethylene glycol or alcohol water fill into the tank from the top manhole. Refrigeration water fill into ice water tank from the top manhole.
Discharging method: Ethylene glycol water discharge from the bottom of ice water tank ethylene glycol outlet. Refrigeration water discharge from the bottom of ice water tank refrigeration water outlet.
Chiller cool the water in the ice water tank, during ice water cycling to cool the wort in the fermenters and heat exchanger.
1.Display degree together
2.PLC control system（S7-1200）
3.Control the power and temperature of the brewhouse, the variable frequency of the wort pump ;
4.control the temperature and the pump of the hot water tank;
5.Control the temperature & pressure of the fermetner and bright beer tanks;
6.Control the temperature of the cooling system；
7.All the control panel is English panel
