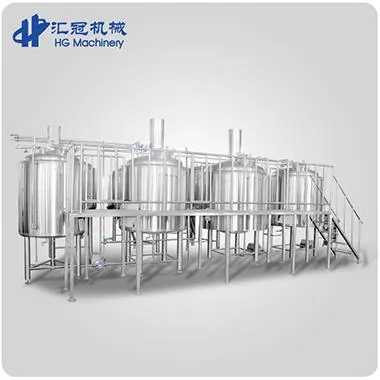

4 vessels, 1 HWT, 1 CWT, 1 spent grains storage tun and 1 brewing water tank; Milled sieve plate, 4 VFD pumps; Stainless steel pipes; Operating platform, Steam Generator (gas or electricity), Valve switch automatic device
1. Better welding and polishing techniques
We have professional technicians and engineers who are very proficient in welding and polishing.
We will polish the tanks for three times. First, tanks are polished by polishing machines to make the surface smooth.Second, they will be polished by machines to make sure the corners and the tank body are smooth.
Last, our technicians will polish the tanks by themselves. In this way, the tanks will not only look beautiful but also enhance the quality of beer. As we spare effort to ensure the good welding and polishing effect, our labor cost is higher, too.
2. Better inside welding and polishing
They will be polished to arrive to 0.4 μm without dead corner firstly, then do acid pickling and passivation which will help to remove the oxygenation on welding line; and form protection film on the steel to avoid rust. It will help you to extend the tanks life time.
3. Better stainless steel plate
We use high quality stainless steel 304/316 plate to produce our tanks.
The thickness of the inner jacket is 3.0mm;
The thickness of the external jacket is 2.0mm;
Produced by thick and authentic stainless steel 304 plate, our tanks are not only beautiful, but also more durable.
4. High quality accessories.
a.Useful spray balls
Our spray balls can spray water on the tank surface towards all directions.It can clean the tanks thoroughly without dead corners.
b.High quality pressure gauge
Working range: 0-0.6MPa
Working accuracy0.01MPa
It is anti-corrosion.It can meausre the pressure inside tanks accurately.
c.Sensitive temperature sensor PT100
Its length is 1000mm,
Silver jacketed wire, Internal containing platinum.
Temperature accuracy is as high as 0.1℃.
d.High quality sampling valve
It allows no dead corner.
Pipe diameter interface: DN20
interface mode: Clamp packaged connection. It is easy to use.
e.Efficient CIP cleaning system
There are two tanks. One is Disinfection tank and the other is alkaline water tank. Material all adopt the international standard of 304 stainless steel, all welding are argon protection single-sided, double-sided forming, with heating function.
It can clean tanks fast and efficiently.
