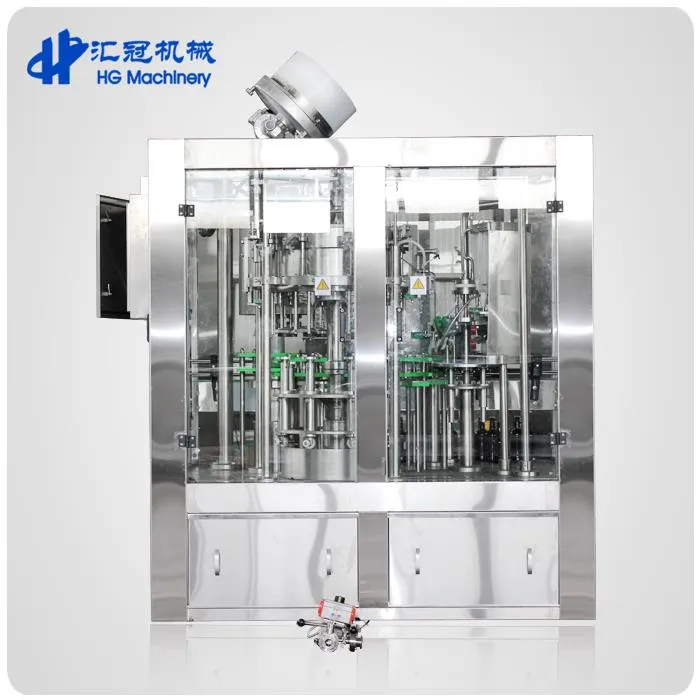

Beer Bottling Machine 8-8-3

Beer Bottling Machine 8-8-3

This filler is independent research and designed by HG machinery company after the introduction and absorption that comes from Germany technologies.
Chat Now

Product Details

8-8-3 beer bottling machine-18-8-3 glass bottle filling machine.jpg
















There is the unique brewery machine in the world, 8-8-3 glass bottle beer rinsing-filling-capping 3 in 1 machine:

There are six innovations of the 8-8-3 machine:

1. Twice vacuumization, long shelf life. Adopt vacuumization and CO2 preparing pressure principal, and then prepare pressure for a second time to make sure the filling quality.

2. Easy to operate. Adopt automatic controling system, realizing trinity of the machines, and control the washing, filling and capping process.

3. Small footprint. The 8-8-3 machine is designed for reducing the footprint of a micro brewery. So the whole machine looks compact and smart.

4. External valve: reduce the touch between valve and beer, keep good taste of beer.

5. The machine cost a lower energy. The electricity lost, water lost and CO2 lost all reduced than other machine.

6. 8 heads for rinsing, 8 heads for filling and 3 heads for capping.

Item

Parameters

Item

Parameters

Washing heads

8

Vacuum pump

0. 20m3/h

Filling heads

8

Power

main motor: 1.5KW

hopper motor: 0 .18KW

vacuum pump motor:1.1KW

chain motor: 0.75KW

Capping heads

3

Dimensions

1800×1600×2550(L*W*H)

Capacity

1000-1500BPH

N.W.

1800Kg

Bottle type

height:150~ 300mm

bottle neck:①50~①85mm

bottle diameter: 50-75mm

Working voltage AC

It can be customized by the customers'electrical conditions.

Air consumption

0.15m3/min(0.4~0.6Mpa)

Control voltage DC

It can be customized by the customers'electrical conditions.

CO2consumption

1.6kg/l000L

Frequency converter

SIEMEMS

Water consumption

0. 8m3/h

PLC

SIEMEMS

Touch screen

Weinview

Pneumatic element

SMC

Detail description:

Rinsing filling and cappingrinsingmmexport1534764333013mmexport1534764328019

_20181218141946.jpg_20181218142034

_20181218142340_20181218141914
