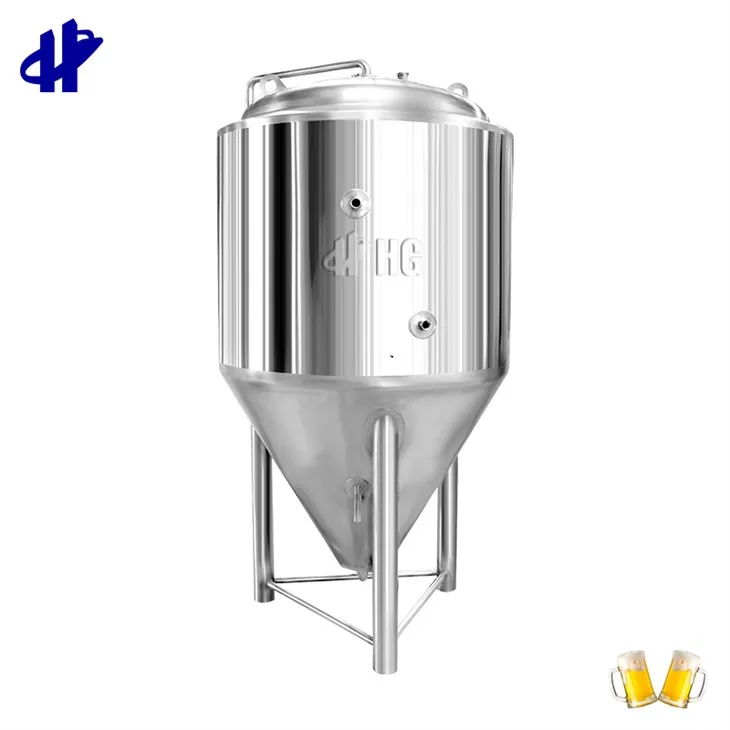

Stainless Steel 1000L Fermenter

Stainless Steel 1000L Fermenter

1000L Fermenter Stainless Steel Component: fermentation tank, brite beer tank, yeast adding tank etc. Material: stainless steel 304/316 Standard configuration: Built with AISI 304 stainless steel 5-year limited manufacturer's warranty Dished head and conical bottom Insulated with...
Chat Now

Product Details

1000L Fermenter Stainless Steel

craft beer micro brewery

Model

HG-FJ-1000L

Gross

capacity

1300L

Useful

capacity

1000L

Thickness

Inner (SUS304)thickness:   3.0mm;

External-Jacket(SUS304)   thickness: 2.0mm

Material

Stainless steel 304

Cooling way

Dimple jacket plate



Cleaning way

CIP in situ cleaning, with   rotary spray cleaning ball

Insulation

Polyurethane-thickness: 100mm

Accessories

Sample valve, Pressure   gauge, Breath valve, Temperature gauge,

Top manhole, Washing   ball, Butterfly valves, CIP Arm, Hop port, Discharge arm   and so on

Component: fermentation tank, brite beer tank, yeast adding tank etc.

Material: stainless steel 304/316

Standard configuration:

Built with AISI 304 stainless steel
5-year limited manufacturer's warranty
Dished head and conical bottom
Insulated with Polyurethane foam
Double-acting air vent valve (below 100HL)
Pressure and anti-vacuum valve (100HL and above)
CIP with spray ball and blow-off arms
Temp, sensor, sample valve, and butterfly valves
Shadowless manway
2" bottom drain outlet
6" hop port
Rotating racking arm


stainless steel mini beer brewery equipment

Sanitary grade stainless steel 304
Cone column vertical fermentation tank
Overall dimensions: φ1260 × 2510
Total volume of 1360L,the effective volume 1000L
Disc seal
Outsource drawing board processing
Sandblasted light band of the welds
The thickness of the polyurethane insulation layer is 80mm
The inner cylinder thickness is 3.0mm
Outsourcing is 2.0mm
Heat exchange area:3.2㎡
Cooling jacket
Top breathing valve
Rotating CIP cleaning balls
The sampling valve is on the barrel body
Separate beer outlet and sewage outlet
Mechanical pressure regulating valve
Pressure gauge
Ice water solenoid valve
The height of the stainless steel leg can be adjusted
Matching valve accessories


Contact us together to find a better solution for your factory
