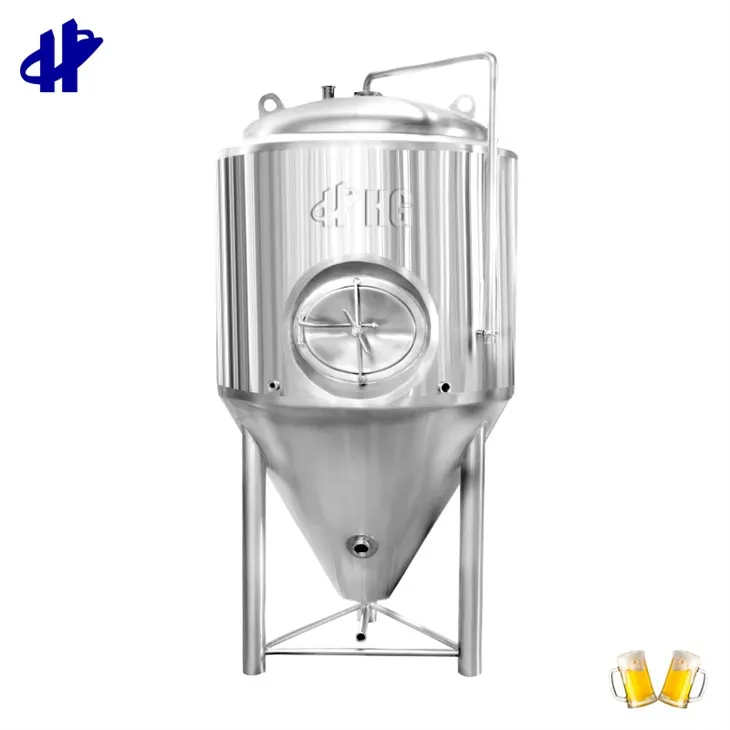

Fermenter Equipment Turnkey Project 1000L Fermenter

Fermenter Equipment Turnkey Project 1000L Fermenter

1000L fermenter Product description Sanitary grade stainless steel 304 Cone column vertical fermentation tank Overall dimensions: φ1260 × 2510 Total volume of 1360L,the effective volume 1000L Disc seal Outsource drawing board processing Sandblasted light band of the welds The thickness of the...
Chat Now

Product Details

1000L fermenter

1000L fermentation tanks suitable for hotels and restaurants and brewery. The fermentation tanks use certified stainless steel material. All tanks and jackets inspected and pressure tested to 3 times operatiing pressure.

fermentation tank stainless steel

Product description

Sanitary grade stainless steel 304
Cone column vertical fermentation tank
Overall dimensions: φ1260 × 2510
Total volume of 1360L,the effective volume 1000L
Disc seal
Outsource drawing board processing
Sandblasted light band of the welds
The thickness of the polyurethane insulation layer is 80mm
The inner cylinder thickness is 3.0mm
Outsourcing is 2.0mm
Heat exchange area:3.2㎡
Cooling jacket
Top breathing valve
Rotating CIP cleaning balls
The sampling valve is on the barrel body
Separate beer outlet and sewage outlet
Mechanical pressure regulating valve
Pressure gauge
Ice water solenoid valve
The height of the stainless steel leg can be adjusted
Matching valve accessories

fermentation tank stainless steel beer

This fermenter will have a beautiful polished finish that will look like a museum or gallery at home, not to mention your brewery! These are gorgeous works of art!


Advantage

1.304 stainless steel plate as a whole, and our stainless steel plate manufacturer is the best in China

2. The cooling efficiency of Maitreya plate jacket is greatly improved.

3. Two stage cooling mode

4. The insulation layer material is high-grade polyurethane with a thickness of 100mm

5. Polishing accuracy up to Ra0.4μ m

6. Strict tank pressure test

7. Energy conservation and pollution emissions


Looking back when the brewing industry first began, one thing is certain: We’ve come a long way. As the breweries become more popular throughout the country, more businesses need to find new ways to stay competitive. Advancements in brewery technology is one of the ways breweries can streamline their process and become more profitable.

Contact us together to find a better solution for your factory
