Components | Useful capacity | Quantity and capacity of components |

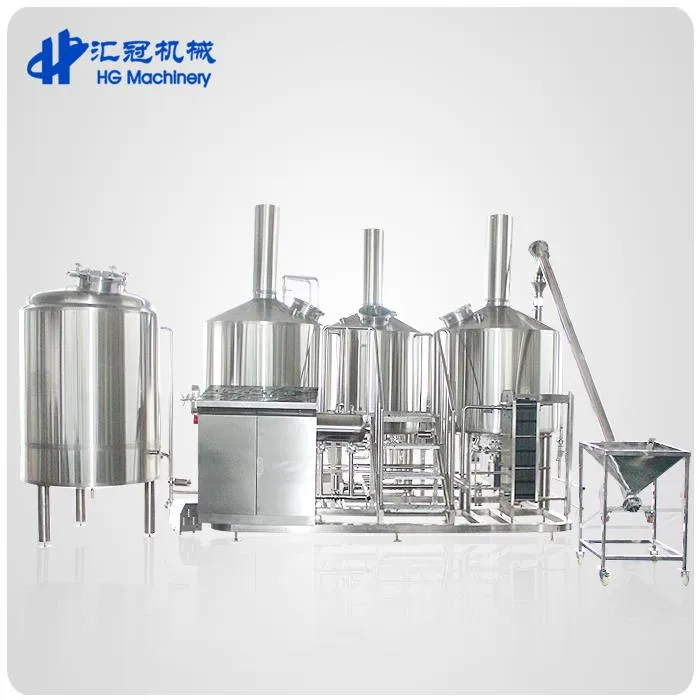

| Mash system | 600L | 1*600L mash tank with blender controlled by lower ABB motor; 1*600L lauter tank using automatic raker, milled sieve plate and lower ABB motor; 1*600L boiling tank 1*600L whirlpool tank; 1*1200L hot water tank; 1*mixer; 1*40L hop filter; 1*40L wort grant; 1*BR0.23/20 20m2 plate heat exchanger; 3*5000L/h wort/hot water pumps using ABB motors 1*70kg/h gas-fired steam boiler; 1*operation platform; 1* pipeline for mash system |
| Fermentation system | 1200L | 8*1200L fermentation tanks; 1*40L yeast tank; 1*pipeline for fermentation system and cooling system |
| Refrigerating system | 1200L | 1*1200L Ethylene glycol tank 1*1200L cold water tank 1*8HP chillers; 1*5000L/h ethylene glycol/cold water pump using ABB motor; |
| CIP system | 100L | 1*100L movable CIP station |
| Controlling system | Controlling system | stainless steel cabinet shell with Siemens touch screen and PLC(semi-automatic mash system and automatic fermentation& cooling system) |
Product Description
Mash TankLED lamp: save more energy and good lighting. Material:Stainless steel 304 |
|
| Lauter Tank Milled sieve: filter plate gap≤0.7mm Customized raker in mash tank Moto power is 0.55 kw; ratio 1:43 |
Boiling TankSpring washing ballGood efficiency heating element LED sight light:save more energy and good lighting Indoor exhaust |
|
| Whirlpool tankGlass manhole: easy to observe ABB motor power 0.55kw |
Fermentation TankHop adding port: use to add the hopsDimple plate: it has more refrigerated area Stainless steel spray washing ball Beer outlet valve, the size is customized |
|
Packing & Delivery
|
|
The iron frame packing makes the equipment safer in transportation. | The iron frame packing makes the equipment safer in transportation. |
Certificates
Weld and Polishing
Our company
We have specialized in designing and manufacturing brewery equipments for over 10 years, whose cost is more competitive than your local suppliers. We are able to install and maintain equipments in your brewery. Our great technical supporting and accessory supply is also permanent available.
