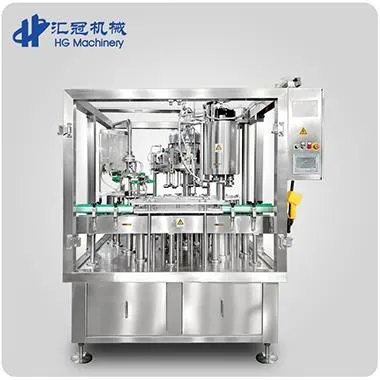

8-8-3 Beer Bottle Rinsing&Filling&Capping Machine

8-8-3 Beer Bottle Rinsing&Filling&Capping Machine

This 8-8-3 bottle filling machine is with 8heads rinsing,8heads bottling and 3 heads capping ,and it's a rinsing-filling-capping 3 in 1 machine. The filling machine is independently developed and designed by Hg machinery company after introducing and absorbing German technology.
Chat Now

Product Details


 innovations of this 8-8-3 machine:

1. Twice vacuumization, long shelf life. Adopt vacuumization and CO2 preparing pressure   principal, and then prepare pressure for a second time to make sure the filling quality.

2. Easy to operate. Adopt automatic controling  system, realizing trinity of the machines, and control the washing, filling and capping process.

3. Small footprint. The 8-8-3 machine is designed for reducing the footprint of a micro brewery. So the whole machine looks compact and smart.

beer glass bottle filling labeling machine

Specifications:

Item

Parameters

Item

Parameters

Washing heads

8

Vacuum pump

0. 20m3/h

Filling heads

8

Power

main motor: 1.5KW

hopper motor: 0 .18KW

vacuum pump motor:1.1KW

chain motor: 0.75KW

Capping heads

3

Dimensions

1800×1600×2550(L*W*H)

Capacity

1000-1500BPH

N.W.

1800Kg

Bottle type

height:150~300mm

bottle neck:

φ50~φ85mm

bottle diameter:

φ50-φ75mm

Working voltage AC

It can be customized by the customers'electrical conditions.

Air consumption

0.15m3/min(0.4~.6Mpa)

Control voltage DC

It can be customized by the customers'electrical conditions.

CO2consumption

1.6kg/l000L

Frequency converter

SIEMEMS

Water consumption

0. 8m3/h

PLC

SIEMEMS

Touch screen

Weinview

Pneumatic element

SMC


Detail Pictures:

8-8-3 beer filling machine


About HG Machinery:

Shandong HG Machinery Co., Ltd specializes in providing beer equipment , beverage equipment-based fermentation equipment and fermentation technology.

By 19 years’ effort and persistence on professionalism, she becomes the most professional liquid package machinery research and manufacturing base,

National key hi-tech enterprise and National Torch Program projects enterprise. HG company has more than more than 20 years experienced engineers

in brewery industry, and owns more than 79 innovation patents. Products are sold to USA, Canada, Australia, Europe and South Africa etc, more than 150 countries and areas.

factory


Our Service:

1.Pre-Sales Service:

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service:

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.




Package&Delivery:

We usually use iron box to pack equipment and machine.

If container is too tigher,we will use PE film for packing or pack it according to customers special request.

As for delivery, we usually shipping equipment from Qingdao Port,

if customers have special request, we'll support them.


FAQ

Q: Are you a manufacturer?
 A:Yes, We are manufacturer and we have more than 20 years in brewing and beer filling equipment.
Q: What is your available port of shipment?
A: Qingdao, Tianjin, Ningbo, Shanghai, ect or customer's request.
Q: How could we confirm the details of the products?
A: We'll provide all the drawings for you to confirm before production.
Q: How long the warranty will be?
A: 3 years warranty for the whole tank and the main equipment, 1 year for the accessories and auxiliaries.
Q: How about the installation and training?
A: We can supply the installation and training.

There are two options:1st option: We could appoint our engineer to your company to debug and repair,

as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side.

2nd option: On-line service will be provided. If your product still under guarantee period, the necessary accessories and parts will be provided free, the buyer afford the transportation cost.
