12-1 beer canning high quality filling machinery
Item | Production capacity | Filling method | Material | Dimensions |
HG-2-1 | 100-200CPH | Isobaric filling | SUS304 | 1100*750*2200mm |
HG-4-1 (Semi automatic) | 100-300CPH | Isobaric filling | SUS304 | 1800*750*2200mm |
HG-4-1 (Fully automatic) | 500-700CPH | Isobaric filling | SUS304 | 700*800*1800mm |
HG-12-1 | 1500-2000CPH | Isobaric filling | SUS304 | 2150*1300*1900mm |
HG-20-4 | 6000CPH | Isobaric filling | SUS304 | 2200*1750*1900mm |

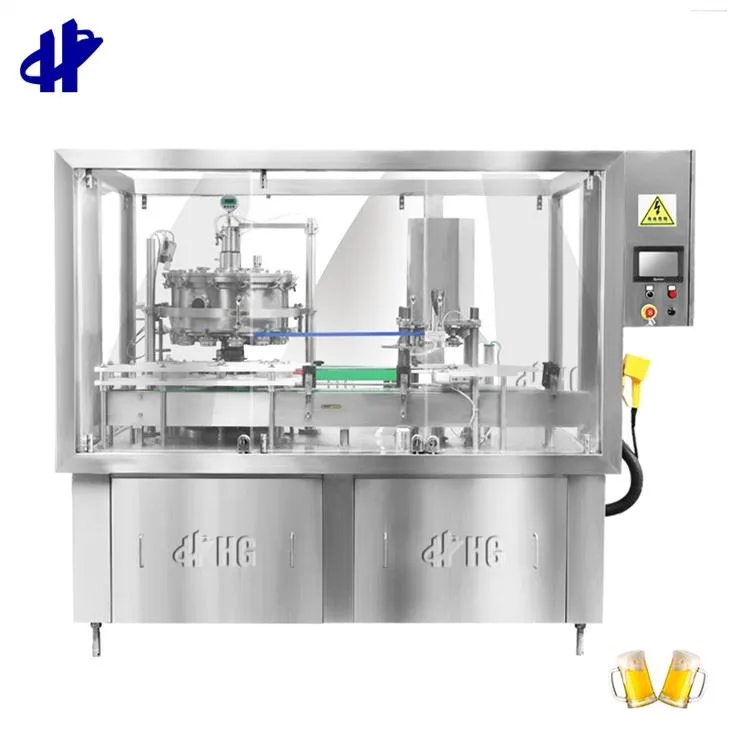

This 12-1 type fully automatic canning machine is special designed for medium capacity brewery/brew pubs. It’s easy operating with high efficiency. The working flow includes CO2 purge, filling and then sealing the caps. All-in-one filling method design, the working is reliable.
Model | HG-GZ-12-1 |
Capacity | 2000cans/h |
Can size | Height：120~180mm, Diameter：Ø50~Ø85mm |
Sterileair consumption | 0.2m3/min(0.4~0.6Mpa) |
CO2 consumption | 260g/100L |
Aeration | 25-35 |
Filling temperature | <40C |
Power | 2.8KW |
Overall size | 2150*1300*1900mm |
Weight | 1500Kg |
1. Strict aseptic requirements. Packaged beer should conform to the hygiene standards; prevent the microorganisms or microbial contamination, to ensure the biological stability.
2. In the packaging process should try to reduce CO2 loss, in order to make sure the taste of beer and foam properties.
3. In the packaging process should try to avoid contact with air, as far as possible reducing the intake of oxygen, prevent influence by oxidation stability and non-biological stability of beer flavor.
4. The inside and outside of the bottle are clear, the trademark is correct, close to the surface, tight seal, no leakage.
5. The liquid level is in order and the volume meets the standard requirements.
6. Try to reduce packaging loss.
Adopt constant pressure filling principle, filling valve adopts high precision mechanical valve.It has the advantages of fast filling speed and high liquid level accuracy.The Siemens automatic control system is adopted to realize the trinity of controlling the process of washing, filling and capping, so as to realize filling only when there is a bottle, stopping filling only when there is no bottle and no broken bottle. Filling process after two times of vacuum, the filling process is more clean and pure, constant pressure filling operation, filling process is more stable.
Our company
Shandong HG Machinery Co., Ltd. is an equipment manufacturer focusing on the global biological fermentation industry. It has more than 19 years of experience in the biological engineering industry, beer (beverage) brewing equipment and filling machine industry, and always focuses on the manufacturing of high-end equipment.The company is mainly engaged in beer brewing equipment, for large, medium and micro breweries, hotels, restaurants, bars brewing enthusiasts to provide high-end comprehensive services from product design, production, processing, installation, process process training.
Packed And Delivery
lron frame for LCL shipping
20 foot container/40 foot container for FCL shipping
Transportation method: By sea/Railway/Road/Air
