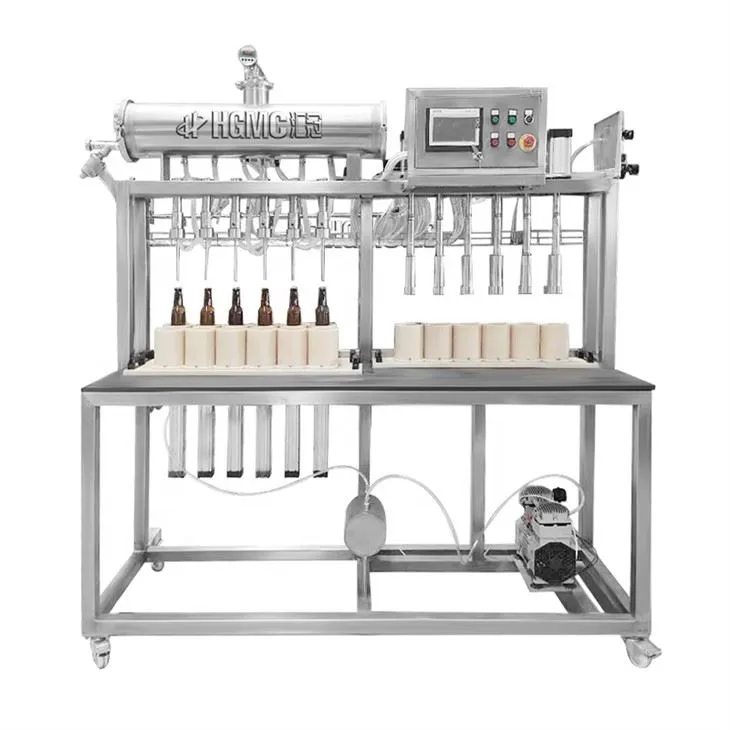

6 Heads Beer Bottling Equipment Filling Machine

6 Heads Beer Bottling Equipment Filling Machine

6 heads beer bottling equipment filling machine The beer filling machine is filled under atmospheric pressure, and can also be divided into two types: one is that the pressure in the liquid storage tank is equal to the pressure in the bottle, and is filled by the liquid self-weight flowing into...
Chat Now

Product Details

6 heads beer bottling equipment filling machine

6 heads beer filling machine

Item
Parameter
Model
HG-GZ-6-6
Capacity
200-400BPH
Bottle size
Height:150~300mm, Diameter:Ø50~Ø85mm
Sterile air consumption
0.3m³/min
Water consumption
260g/100L
Vacuum motor
0.55KW
co2 pressure
≥0.3MPa
Sterile water pressure
≥0.2Mpa
Overall size
2000*1200*2200mm
Weight
320KG

The beer filling machine is filled under atmospheric pressure, and can also be divided into two types: one is that the pressure in the liquid storage tank is equal to the pressure in the bottle, and is filled by the liquid self-weight flowing into the bottle, which is called Isobaric filling; the other is that the pressure in the liquid storage tank is higher than the pressure in the bottle, and the liquid flows into the bottle by the pressure difference, and the high-speed production line mostly adopts this method. The bottles filling and capping machine is used to fill beer or beverage into bottles, it is very easy to operate.


6 heads beer filling machine6 heads beer filling machine6 heads beer filling machine

1.The filling machine is mainly used for washing, filling and sealing bottles, can be used for coke, Sprite,Beer and other carbonated beverages.

2. Washing bottles, filling, capping on a machine.

3. The time between the material and the external is shortened. And improve the health conditions, production capacity and economic benefits.

4. The main machine adopts advanced programmable controller control technology. The main electrical components used in MITSUBISHI, OMRON, SIEMENS and other international well-known products.
