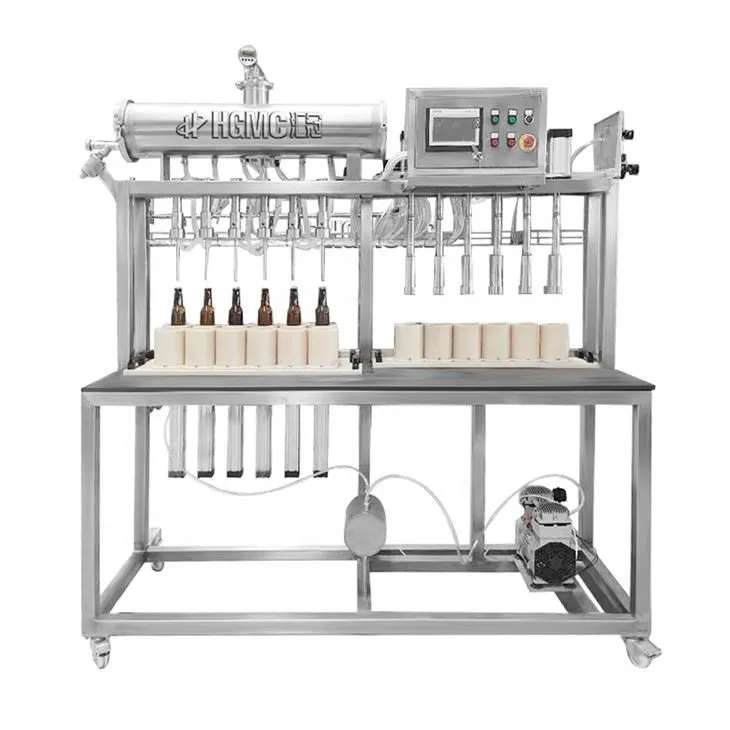

6 Heads Beer Filling System Bottling Machine

6 heads beer filling machine

Item
Parameter
Model
HG-GZ-6-6
Capacity
200-400BPH
Bottle size
Height:150~300mm, Diameter:Ø50~Ø85mm
Sterile air consumption
0.3m³/min
Water consumption
260g/100L
Vacuum motor
0.55KW
co2 pressure
≥0.3MPa
Sterile water pressure
≥0.2Mpa
Overall size
2000*1200*2200mm
Weight
320KG

Main function and feature:

1.Filling and capping proces can be finished by the machine at one time.

2.With CO2 pressurization and vacuumization function.

3.Adopt isobar filling method and with unique pressure maintaining system, performance stable and reliable, beer loss minimum.

4.With pressure compressor, to gurantee a stable filling process.

6 heads beer filling machine6 heads beer filling machine6 heads beer filling machine

Working process:

1.  Connect beer, compressed air and Co2.

2.  Turn the valve 1 to the position " down", and the cylinder goes down.

3.  Turn the valve 2 to the position  " pressurize" .

4.  Observe the pressure value of the pressure gauge 4, set the pressure value a little lower than the fermenting tank pressure. For example, if the fermenting tank pressure is 0.15 MPA, please set the pressure gauge value as 0.11-0.12 MPA.

5.  Turn the valve 4 to the position " Fill", then it start to fill, when the beer reach the required level , turn the valve 3 to the position " stop", and turn the valve 2  to the position " release", and when the pressure gauge shows "0", turn the valve  1 to the position " up", then the cylinder goes up.

6.  Push the bottles to the capping station, Turn the valve 5 to the position  "down", then it starts to seal, when finished, turn the valve 5 to the station " up" , the cylinder goes up.
