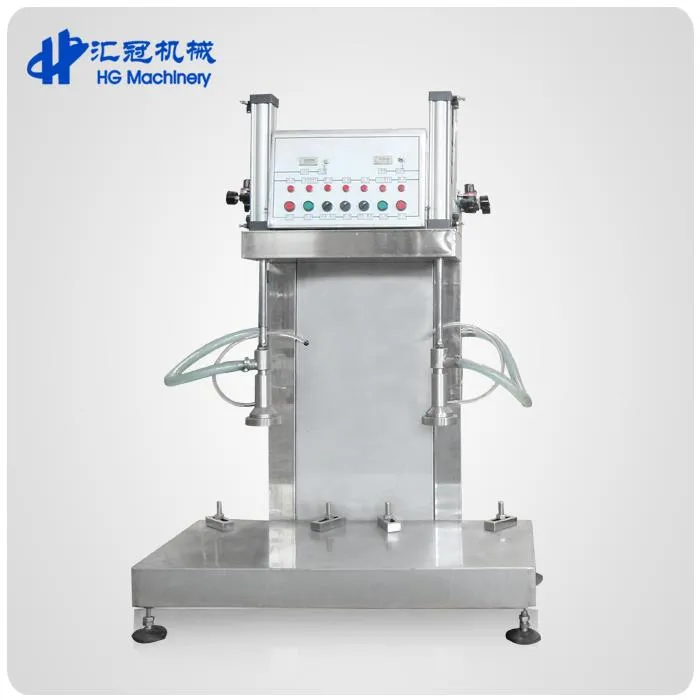

This Beer Keg Filling Machine is an electronic weighing automatic filling machine. It adopts the patent technology of the isopiestic pressure filling. It is not affected by wine pipeline, wine source pressure and wine pressure stability. All process is manual operation, easy to control. The machine is stainless steel. Superior quality of corrosion proof, long-life for use.
Pressure of beer | 0.2-0.3 Mpa |
Pressure of the air | 0.6-0.8 Mpa |
Pressure of CO2 | 0.1-0.2 Mpa |
Pressure of Cylinder | 0.35-0.4Mpa |
Technology parameter and quotation
Item | Parameter |
Model | HG-SXGZ-2 |
Filling Heads | Two heads |
Production capacity | 30-60 kegs/hr |
Size of platform | 500mm*960mm |
Overall size | 560*960*1460mm |
Weight | 120kg |
Rate of beer waste | Less than 1% |
Material | SUS304 |
Kegs size | 2-50L Plastic and stainless steel kegs |
Components list
Name | Spec | Qty. | Manufacturer |
Frame | 1 | HG | |
PLC control system | 410*220*240mm | 1 | SIMENS |
Filling valve | 1 | HG | |
Press retaining valve | 2 | HG | |
Liquid level controller | 2 | HG | |
Cylinder | SU50*300 | 2 | AIRTAC |
Pneumatic dyad | AFR-2000 | 1 | AIRTAC |
Pressure adjust valve | AR-2000 | 3 | AIRTAC |
Pneumatic angle seat valve | DN15 | 2 | AIRTAC |
Solenoid valve | 4V210-08 | 1 | AIRTAC |
Other valve and pipe | Sanitary grade | 1set | CHINA |
Feature:
1. Programmable controller automatic control in the whole process, stable and reliable performance, high work efficiency
2. Double-station, which can respectively fill containers of different capacities, and beer kegs of different specifications can be quickly converted;
3. Touch-type display, can set any filling quantity, can also set the specifications of common barrels on the selection switch, easy to operate, reliable quality
4. Automatic metering filling, or automatic filling according to barrel volume
5. Optional 5L-50L filling volume
6. Adopting German Baode flowmeter, accurate measurement
7. With CIP automatic cleaning system
8. Contains filling and pipeline cleaning procedures.
9. Alcohol loss during irrigation process <0.5%
10. Work status shows the filling process with counting function
Components pictures
Control board and Siemens PLC
Solenoid valve
Pressure adjust valve and Pneumatic dyad
Filling head (Thick pipe: filling beer; thin pipe: CO2 flush and air discharge)
