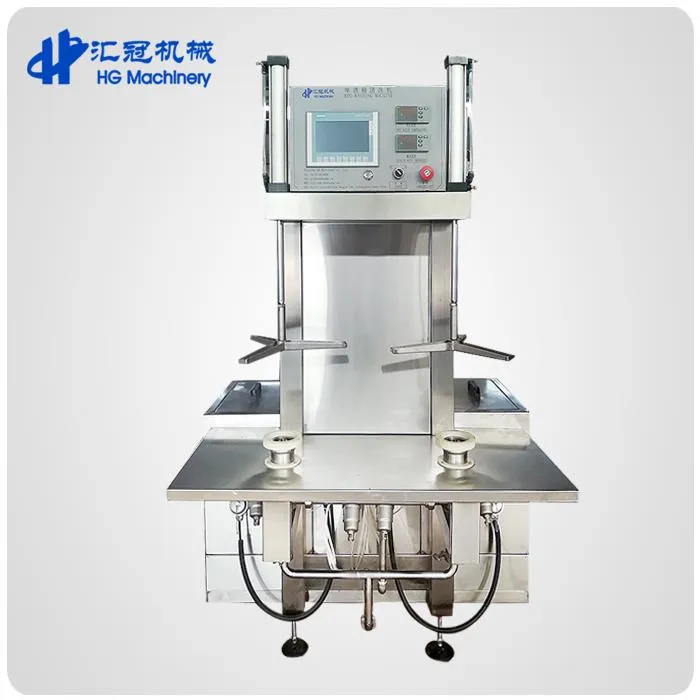

Automatic Beer Keg Washing Machine is designed for the washing and sterilizing work of all kinds of beer refreshing containers (including stainless steel keg and plastic beer keg). And this machine can do the works washing, sterilizing and CO2 pressure preparing automatically. The control unit of this machine uses the PLC of Siemens to control the whole process. All of the controls parameters (time value) can be adjusted when it is running. Clients can adjust time parameter according to different needs.
1) The high powered water pumps clean completely. 2) Establish working routine willfully, easy to use. 3) Equipped with CO2 prepare presses function. 4) The saving water installment, 50% water off in the clean process. 5) Unique water temperature control device, the lye clean. 6) With three kind of sanitizer liquid, safe and reliable, is suitable for the stainless steel barrel. 7) Polyamine ester rubber plate, the localization is safe and reliable.
|
Item |
Parameter |
||
|
Model |
HG-TQX-2 |
||
|
Washing nozzles |
Two heads |
||
|
Size of platform |
510mm*1170mm |
||
|
Height of the platform |
660mm |
||
|
Size of the machine |
1200*1550mm*2070mm |
||
|
The maximum stroke of the stopcock |
300mm |
||
|
Net weight |
450 kg |
||
|
Capacity |
60-80 kegs/hour |
||
|
Air consumption |
8-22.5 m3/h |
||
|
Water consumption |
1-3 m³/h |
||
|
Power |
950 W |
||
|
Washing type |
inversion |
||
|
The keg size |
Dia:φ250mm-φ500mm H:400mm-660mm |
||
|
Washing scope |
10-60L plastic stainless steel beer kegs |
Certifications
Detailed Images
|
The touch screen operating designInternational famous brand PLC controlling system/electrical elements used, durable and easy to operate and maintain. |
|
Good stainless steel 304 material Stainless steel food grade material with good welding and polishing. |
|
|
PLC controlling system International famous brand PLC controlling & Touch screen, durable and reliable. |
|
Cylinder and pumps Domestic top brand pumps and valves, their certification are reliable and verifiable |
|
Factory Show
Shandong HG Machinery Co., Ltd. specializes in designing, researching and manufacturing beer brewery equipment, beer bottling and canning line and the subsidiary equipment. Introducing European advanced technology and innovating on the technology, HG company becomes the leader in domestic beer industry and the most professional supplier for liquid production and package turnkey project.
HG company is located in Hi-tech Development Zone, Jinan, Shandong province, near Jinan international airport and Qingdao port, so it is convenient for land and sea transport. There are 80 employees, including 20engineers and after sales engineers, the strongest after sales team in China, who are professional in mechanic, craft, and electric control.
---------------------------Gathering all wisdom to make the best quality!
Customer Show
Accessory equipment for beer canning line:
|
Filter: The filtering capacity of this filter is made of excellent SS304, and has a good filtering precision, small material loss, strong corrosion resistance. Disassembling is unnecessary when cleaned, and its anywhere can be well cleaned. It mainly used in Beer, Fruit wine, Beverage, Sugar, Seasoning, Medicine, Chemical industry. |
|
|
Rotary Worktable： It is for sorting the bottles before filling. Dimension: φ900*1300mm Material: Stainless steel 304 |
|
Two heads keg washer: This equipment is designed for all kinds of beer kegs washing, sterilizing and filling. The process of washing, sterilizing, filling is finished automatically. The temperature of hot water and alkali is controlled automatically. |
|
|
Tunnel pasteurizer: This spray warm and cooling machine also named tunnel pasteurizer, which is different from the direct heat method (instantaneous sterilization), tunnel pasteurizer sterilize products and containers together, so that you can eliminate various possible causes of the growth of harmful bacteria within the allowed time. |
|
Bottle dryer: 1. This machine is applicable for drying the bottles before labelling. 2. The wind direction is adjustable. The wind mouth can also be adjusted according to actual situation. 3. Almost every kind and size of bottles can be dried by this machine. 4. Low energy cost. 5. No easy-wear accessories or parts. |
|
|
Labeling machine: Self adhesive labeling maachine, used for round and square bottle. It can label one, two or three labels. |
|
Packing machine: It is used to pack plastic film package. |
|
FAQ
1. Q: Are you manufacturer or trading company?
A: We are a professional manufacturer. 2. Q: Where is your factory located? A: Our factory is located in Dianliu industrial park, Licheng District, Jinan, Shandong, China, 2 hours to Beijing. 3. Q: How could we confirm the details of the products? A: We will provide all the drawings for you to confirm. 4: Q: How long the warranty will be? A: 3 years warranty for the main beer brewery equipment, 1 year for the accessories and auxiliaries. 5. Q: How about the installation? And what if the machine goes down? A: Yes, we will do that. There are two optionsa. The first option: We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side. The second option. On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, but the transportation cost of it shall be on you side.
