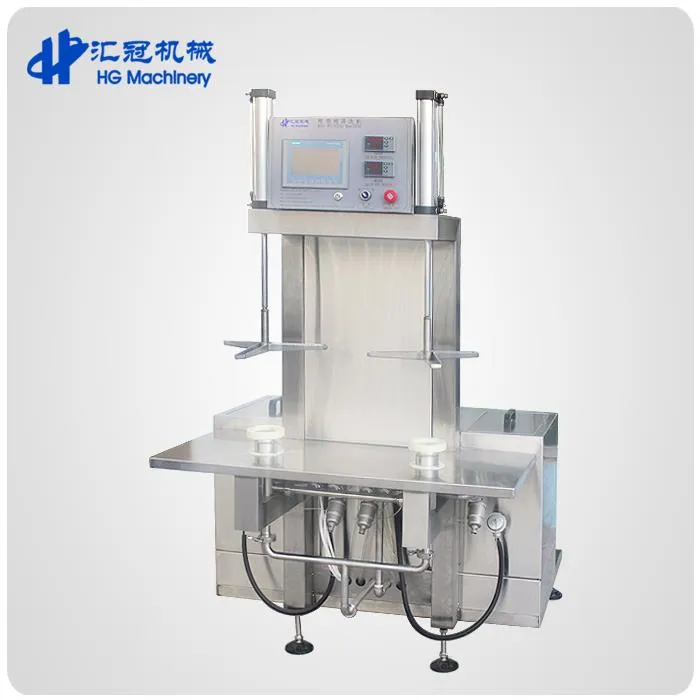

China Customized Automatic Double 2 Heads Beer Keg Washer Machine For Sale

China Customized Automatic Double 2 Heads Beer Keg Washer Machine For Sale

Automatic Beer Keg Washing Machine is designed for the washing and sterilizing work of all kinds of beer refreshing containers (including stainless steel keg and plastic beer keg). And this machine can do the works washing, sterilizing and CO2 pressure preparing automatically.
Chat Now

Product Details

01

Automatic Beer Keg Washing Machine is designed for the washing and sterilizing work of all kinds of beer refreshing containers (including stainless steel keg and plastic beer keg). And this machine can do the works washing, sterilizing and CO2 pressure preparing automatically. The control unit of this machine uses the PLC of Siemens to control the whole process. All of the controls parameters (time value) can be adjusted when it is running. Clients can adjust time parameter according to different needs.

Main Features

1) The high powered water pumps clean completely. 2) Establish working routine willfully, easy to use. 3) Equipped with CO2 prepare presses function. 4) The saving water installment, 50% water off in the clean process. 5) Unique water temperature control device, the lye clean. 6) With three kind of sanitizer liquid, safe and reliable, is suitable for the stainless steel barrel. 7) Polyamine ester rubber plate, the localization is safe and reliable.

IMG_4762

Technology parameter

Item

Parameter

Model

HG-TQX-2

Washing nozzles

Two heads

Size of platform

510mm*1170mm

Height of the platform

660mm

Size of the machine

1200*1550mm*2070mm

The maximum stroke of the stopcock

300mm

Net weight

450 kg

Capacity

60-80 kegs/hour

Air consumption

8-22.5 m3/h

Water consumption

1-3 m³/h

Power

950 W

Washing type

inversion

The keg size

Dia:φ250mm-φ500mm H:400mm-660mm

Washing scope

10-60L plastic stainless steel beer kegs

Certifications

CE certificate of HG company99

Detailed Images

20190107135032

The touch screen operating design

International famous brand PLC controlling system/electrical elements used, durable and easy to operate and maintain.

Good stainless steel 304 material

Stainless steel food grade material with good welding and polishing.

201901071404071834513
201901071404562184450

PLC controlling system

International famous brand PLC controlling & Touch screen, durable and reliable.

Cylinder and pumps

Domestic top brand pumps and valves, their certification are reliable and verifiable

201901071406137298054

Factory Show

20190103140842

025

Enterprise Introduction

Shandong HG Machinery Co., Ltd. specializes in designing, researching and manufacturing beer brewery equipment, beer bottling and canning line and the subsidiary equipment. Introducing European advanced technology and innovating on the technology, HG company becomes the leader in domestic beer industry and the most professional supplier for liquid production and package turnkey project.

HG company is located in Hi-tech Development Zone, Jinan, Shandong province, near Jinan international airport and Qingdao port, so it is convenient for land and sea transport. There are 80 employees, including 20engineers and after sales engineers, the strongest after sales team in China, who are professional in mechanic, craft, and electric control.

                                            -----------------------------------------Gathering all wisdom to make the best quality!

Customer Show

QQ图片2018122009520000

  Accessory equipment for beer canning line:

Filter:

The filtering capacity of this filter is made of excellent SS304, and has a good filtering precision, small material loss, strong corrosion resistance. Disassembling is unnecessary when cleaned, and its anywhere can be well cleaned. It mainly used in Beer, Fruit wine, Beverage, Sugar, Seasoning, Medicine, Chemical industry.

beer bottling machine cost

Rotary Worktable:

It is for sorting the bottles before filling.

Dimension: φ900*1300mm

Material: Stainless steel 304

Two heads keg washer:

This equipment is designed for all kinds of beer kegs washing, sterilizing and filling. The process of washing, sterilizing, filling is finished automatically. The temperature of hot water and alkali is controlled automatically.

Beer Bottling Plant

Tunnel pasteurizer:

This spray warm and cooling machine also named tunnel pasteurizer, which is different from the direct heat method (instantaneous sterilization), tunnel pasteurizer sterilize products and containers together, so that you can eliminate various possible causes of the growth of harmful bacteria within the allowed time.

Bottle dryer:

1. This machine is applicable for drying the bottles before labelling.

2. The wind direction is adjustable. The wind mouth can also be adjusted according to actual situation.

3. Almost every kind and size of bottles can be dried by this machine.

4. Low energy cost.

5. No easy-wear accessories or parts.

Beer Glass Bottle Filling Machine
Beer filling equipment

Labeling machine:

Self adhesive labeling maachine, used for round and square bottle.

It can label one, two or three labels.

Packing machine:

It is used to pack plastic film package.

beer filling system

FAQ

1. Q: Are you manufacturer or trading company?

A: We are a professional manufacturer. 2. Q: Where is your factory located? A: Our factory is located in Dianliu industrial park, Licheng District, Jinan, Shandong, China, 2 hours to Beijing. 3. Q: How could we confirm the details of the products? A: We will provide all the drawings for you to confirm. 4: Q: How long the warranty will be? A: 3 years warranty for the main beer brewery equipment, 1 year for the accessories and auxiliaries. 5. Q: How about the installation? And what if the machine goes down? A: Yes, we will do that. There are two optionsa. The first option: We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side. The second option. On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, but the transportation cost of it shall be on you side.
