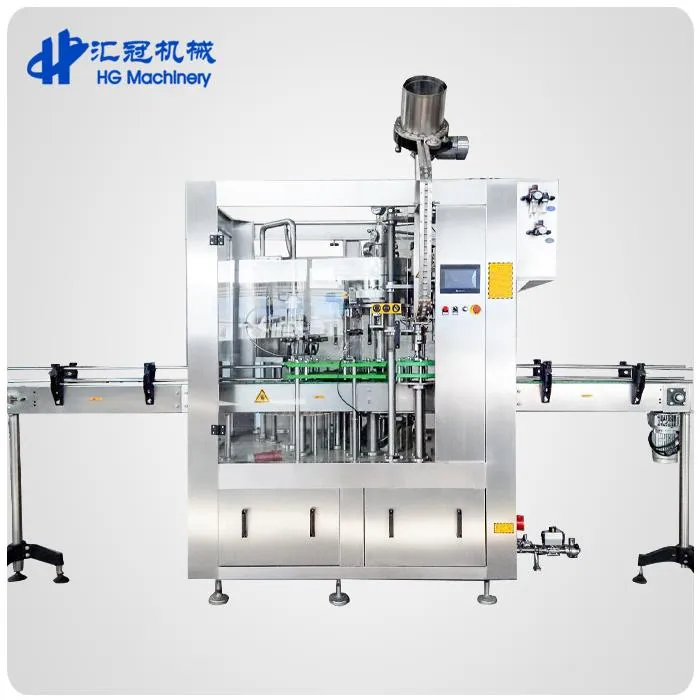

HG - RFC6 / 6 / 1 type beer bottle washing filling capping monoblock is designed combined with the actual situation in our country after the introduction and absorption that comes from Germany technologies. It adopts isobaric filling principle and filling valve adopts high precision mechanical...
Chat Now

Product Details

HG-RFC6/6/1 type beer bottle washing filling capping monoblock is designed combined with the actual situation in our country after the introduction and absorption that comes from Germany technologies.

1. The machine is our patent product.

2.Long shelf life. Adopt vacuumization and CO2 preparing pressure principal.

3.The machine can realize twice vacuum , and oxygen increase uo to 20PPB.

4.Easy to operate. Adopt Mitsubishi automatic controlling system, realizing trinity of the machines, and control the washing, filling and capping process.

5.The valve is the traditional European valve. It’s very stable and hard to be damaged. Even you want to change the valve, it’s easy to find and low-cost.

6.The accessories can be adjusted, so the machine can fill different kind of bottles.

7. Using accessories from internationally renowned brands. For example, Siemens  Mitsubishi

8.The machine cost a lower energy. The electricity lost, water lost and CO2 lost all reduced than other machine.

beer automatic filling machine

Main parts

1. Rinsing part

1) Introduction

This machine is rotary rinser, mainly used in beer bottles . The main structure and the wash equipment wetted parts and external shields are stainless steel; gear transmission.

2) equipment composition and structure introduction

Washing machine is made up of lifting device, the main transmission device, the fixed frame, clamp device, distributor, open clamp cams and over turn cams etc.

blob.pngcommercial mash tun

2. Filling part

1) Introduction

Filling machine are made up of liquor pipe, rotating cylinder bearing base, filling cylinder fulcrum loop, filling cylinder, filling valve, filling cylinder pipe, control loop device, ascending device, the distributor, height adjusting control, cleaning glass, stimulating bubble arm.

2) Height of filling tank adjustment

commercial mash tuncommercial mash tun

The head of filling machine is supported by the middle stand column, loose the key when lift or fall off, then turn adjusting nut and lock the key

3. Capping part

1) Introduction

Capping machine consists of hopper, chute, gland upper part, lower part, lift and anti-rotating pillar.

2) The requirements of the crown cap:

Only a standard height outer-diameter covered crown can guarantee the work of capper operating normally, crown cover should be stored in dry room.

commercial mash tuncommercial mash tun

Basic Parameters:

Name

Parameter

Model

HG-RFC-6/6/1

Material

304 stainless steel including the structure

Rinsing heads

6(diameter:φ595)

Filling heads

6(diameter:φ510)

Capping heads

1(diameter:φ170)

Capacity

500-900BPH

Applicable bottle

Bottle height 150~300mm  DiameterΦ50~Φ80mm

Aseptic air consumption

0.2m3/min(0.6~0.Mpa);

CO2 consumption

60g/100L

Water consumption

Vacuum pump 0. 15m3/h;Washing: 0. 4m3/h

Total power

2.39KW

Main motor

0.37 KW

Hopper motor

0 .18KW

Vacuum motor

1.1KW

Washing Bubble Pump

0.37kw

Cleaning pump

0.37KW

Overall dimension

1520×1120×2200mm(L×W×H)

Weight

1300 Kg

Main components brand

No.

Name

Remark

1

Touch screen

Siemens S7-1200

2

Transducer

Emerson

3

Main electric

Omron

4

PLC

Siemens S7-1200

5

Approach switch

Japan's Omron

6

Light fiber switch

Korea, Autonics

7

Pneumatic elements

Taiwan, Airtac

Easy-worn spare parts

No.

Code

Name

Material

Qty.

Note

1

PJD-00-05

Slip yoke

nylon

6


2

PJD-00-12

Coil spring

0Cr17Ni7Al

6


3

DMF-00-02

By-pass umbrella

Consumption of nitrile rubber

16


4

DMF-02-02

Sealing gasket

Consumption of nitrile rubber

16


5

SYX18186-0302-10

Rolling wheel

MC oilon nylon

4


6

37.5X2.65

Oring seal

Consumption of nitrile rubber

16

GB3452.1

7

8.5X2.5 X2.5

Oring seal

Consumption of nitrile rubber

16

GB3452.1

8

26X12 X3.5

Oring seal

Consumption of nitrile rubber

16

GB3452.1

9

11.2X2.65

Oring seal

Consumption of nitrile rubber

16

GB3452.1

10

8X1.8

Oring seal

Consumption of nitrile rubber

16

GB3452.1

11

15X2.65

Oring seal

Consumption of nitrile rubber

16

GB3452.1

12

4.5 X1.8

Oring seal

Consumption of nitrile rubber

16

GB3452.1



beer filling machine glass bottle


FAQ

Q:How many years of experience in brewing equipment do you have?
A: We have more than 20 years in brewing and beer filling equipment.
Q: How could we confirm the details of the products?
A: We will provide all the drawings for you to confirm before production.
Q: How long the warranty will be?
A: 3 years warranty for the whole tank and the main equipment, 1 year for the accessories and auxiliaries.
Q: How about the installation?
A: We can supply the installation. There are two options. The first option: We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side. The second option: On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, the buyer afford the transportation cost.
Q: How do you guarantee the filling machine operation?
A: Before the delivery, we will test and debug all machines in good condition and record the video for your checking.
