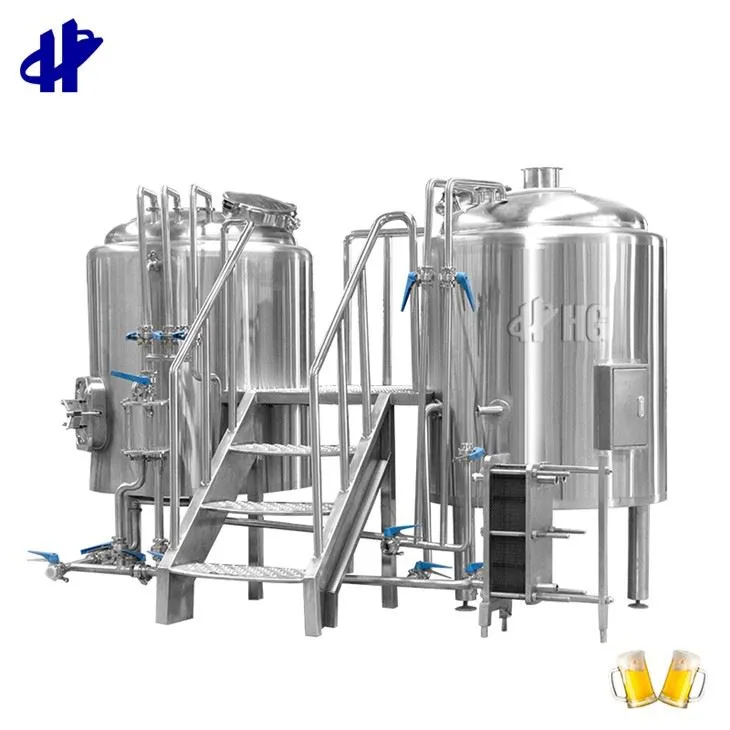

500L beer mush tun lauter whirlpool tank boil kettle
Standard Brewhouse configuration:
Mash / Lauter Tun with side grain out access
Brew Kettle / Whirlpool Vessel with integrated steam jacket and temperature control
Semi-Automated Controls with PLC & Remote Access Support
304 Sanitary Pumps with VFD Controls
304 Stainless Steel Plate Heat Exchanger with integrated temperature controls
Manual Sanitary Butterfly Valves
Ergonomic and efficient 304 stainless steel Brew Deck with easy access to all vessels and brewing functions
Brewhouse System | Including Mash Tun,Lauter tun, Kettle Tun and Whirlpool tank; Heating way: Electricity heating,direct fire heating or steam heating; With grain rake, false bottom, spray ball etc; |
Details
2,3,4 and 5 vessels can be avaiable
All the tanks materials are made by 304 Stainless steel
304 stainless steel operate platform and stairs
Glass manways
1~60bbl volume system can be available
Grain mill and screw conveyer (optional)
Plate heat exchanger
Stainless steel 304 pump with ABB or Siemens motors
Automatic and Semi-automatic control for choice,PLC or mobile control can be available
Advantage
The tank has dish top, cylinder body and 60-70° cone bottom.The tank body has interlayer and cooling jacket. The tank body,upper and lower closure heads(or taper) all adopt spinning R-angle processing. The internal wall of the tank has got mirror polishing with finish Ra≤0.4μm. The temperature insulation material adopts high efficiency polyurethane foam.
