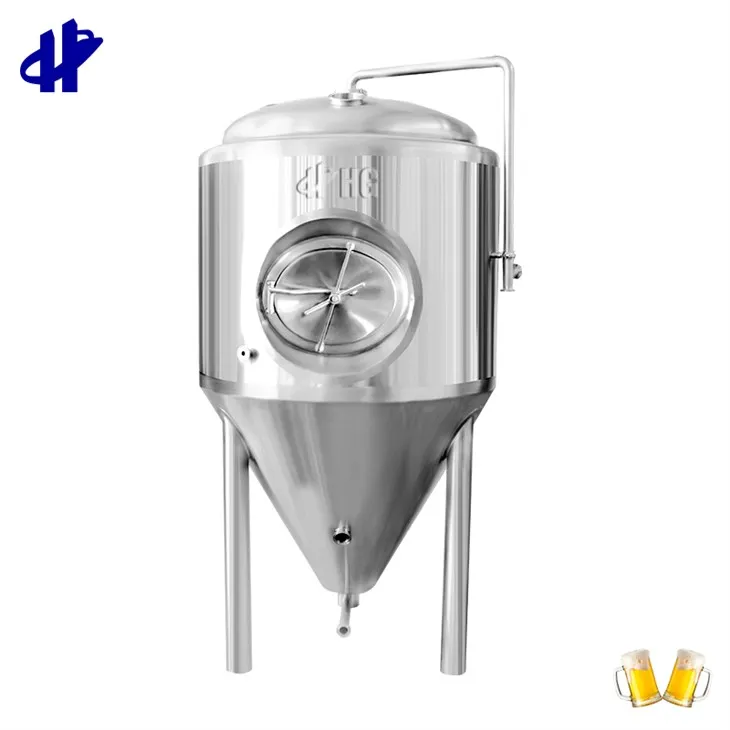

500L Brewery Equipment Fermentation Beer Tank Fermentation Tank

500L Brewery Equipment Fermentation Beer Tank Fermentation Tank

500L brewery equipment fermentation beer tank fermentation tank Fermentation equipment is defined as a standard in the whole field of beer equipment.The conical bottom facilitates the recovery of yeast after fermentation.The temperature at which the glycol jacket is used to cool the...
Chat Now

Product Details

500L brewery equipment fermentation beer tank fermentation tank

Fermentation equipment is defined as a standard in the whole field of beer equipment.The conical bottom facilitates the recovery of yeast after fermentation.The temperature at which the glycol jacket is used to cool the fermenter.When the glycol water flows in the sheath around the fermenter, the fermentation temperature can be uniformly reduced.

high quality commercial fermenting equipment beer

The fermentation tanks use certified stainless steel material. All tanks and jackets inspected and pressure tested to 3 times operatiing pressure. The dimension of the tanks can be designed according to customer’s requirement. Tank design pressure is 0.4Mpa and testing pressure is 0.3Mpa.


The fermentation tank can be individually controlled with a glycol sleeve, most equipped with accessories such as overpressure and underpressure valves, CIP cleaning nozzles, sanitary sample valves, manholes, etc.The design of HG fermenter is based on our extensive knowledge of beer, especially at the bottom of the conical fermenter, where we combine fermentation and maturation in one container, which is very important.When calculating your fermentation and delay capacity and configuration, you must consider sufficient fermentation and delay time to produce premium beer.

500l beer jacketed conical fermenter tank

500l beer jacketed conical fermenter tank

No.
Item
Specification
01
Gross capaity
625L
02
Useful capacity
500L
03
Thickness
Inner (SUS304)thickness: 3.0mm;
External-Jacket(SUS304) thickness: 2.0mm
04
Material
Stainless steel 304
05
Cooling way
Dimple jacket plate
06
Cleaning way
CIP in situ cleaning, with rotary spray cleaning ball
07
Insulation
Polyurethane-thickness: 80mm
08
Accessories
Sample valve, Pressure gauge, Breath valve, Temperature gauge,
Top manhole, Washing ball, Butterfly valves, CIP Arm, Hop port, Discharge arm and so on.


Certification

fermenting equipment homebrewing

fermenting equipment homebrewing


Shipping

fermenting equipment homebrewing

In order to protect our brewing equipment from any potential risks during transportation, we have introduced a discreet product

Every detail of our beer can packaging, as well as other auxiliary equipment, is ready for delivery.



For bulk cargo, we use standard wooden boxes to pack our brewing equipment for sea or air freight

So as not to damage the surface of our brewing equipment.



For FCL: our beer brewing equipment will be firmly secured to the container.
