Feature
Brewing System | Components | Capacity |
Grinding System | Miller | 500KG/H |
Heating System | Boiler | 100KG/H |
Brewhouse System | Mash/Lauter Tank | 1000L |
Brew Kettle/Whirlpool Tank | 1000L | |
Hot Water Tank | 1500L | |
Heat exchanger | 10m2 | |
Fermentation System | Fermentation Tank | 1000L/2000L |
Yeast adding Tank | 10L | |
Cooling system | Glycol water tank | 3000L |
Chiller | 10HP | |
Pump | 3T | |
Cleaning System | Disinfection Tank | 100L |
Alkali Tank | 100L | |
Pump | 3T | |
Control System | Control Carbonate | Manual/PLC/HMI |
Parameter
Capacity | Diameter(mm) | Height(mm) | Inner thickness(mm) | Outer thickness(mm) | Pressure(Mpa) | Weight(kg) | Heat Exchange(㎡） | |
1000L | Inner diameter | Outer diameter | ||||||
1100 | 1260 | 2550 | 3 | 1.5 | 0-0.2 | 0.42 | 2.6 | |
900 | 1060 | 3150 | 2.5 | 1.5 | 0-0.2 | 0.37 | 2.6 | |

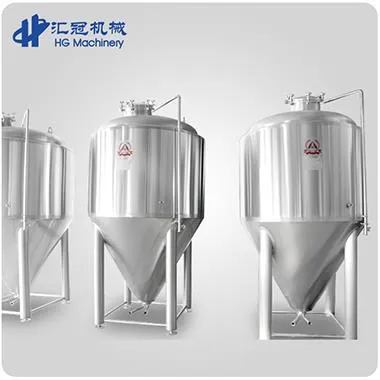

Beer fermenting tank come with cooling jacket
Raw material: stainless steel SUS 304, which is from Shanxi Taigang or Korea Posco.
Beer outlet and drain outlet Top Manhole
welding by fish-scale pattern Polishing can up to Ra0.4μm
We also can produce as customized.
Testing before shipment
Before delivery all of our equipment will have a pressure testing connected with pipe. Welcome to our factory for inspection. We also can take a video of testing for you review
After sales
1.The main equipment is guaranteed for 36 months and the electronic component is 12 months. If any parts go wrong during the warranty period, we provide you to exchange for free.
2.We have professional engineers in overseas service, which can serve in you factory or train your workers.
Capacity | Diameter(mm) | Height(mm) | Inner thickness(mm) | Outer thickness(mm) | Pressure(Mpa) | Weight(kg) | Heat Exchange(㎡） | |
1000L | Inner diameter | Outer diameter | ||||||
1100 | 1260 | 2550 | 3 | 1.5 | 0-0.2 | 0.42 | 2.6 | |
900 | 1060 | 3150 | 2.5 | 1.5 | 0-0.2 | 0.37 | 2.6 | |
