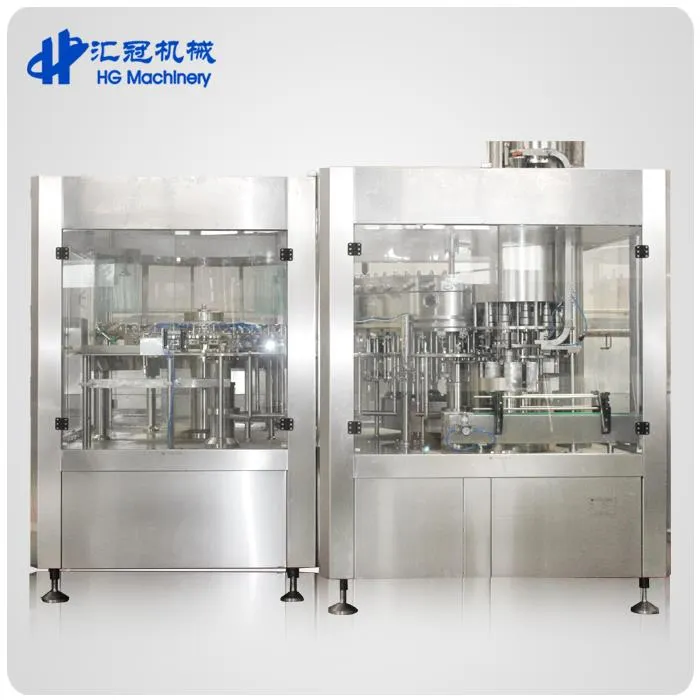

The rinsing/filling/capping 3-in-1 plastic bottle beer filler is a kind of professional filling machine integrator for beer. It is multifunctional which can be used for washing, filling and capping. Plastic bottle beer filler a kind of advanced filling machine integrator which is innovated following the process requirements of filling beer based on the importing and assimilating the foreign advanced technology. PET bottle beer filler is applied mostly in washing, filling, and capping plastic cap. It is the perfect selection to a large or medium-size brewery due to its reasonable configuration, security of operation, dependability of running and its so convenient maintenance.
The primary features:
1. There are some features such as compact conformation, good shape, cozy operation, excellent automaticity and little labor intensity.
2. We adopt air conveyor bottle feeding technology instead of the feeding screw and conveyor chain. Easily change the bottle change over parts.
3. It adopts the blocking bottleneck technology to convey bottles. It does not adjust the height of equipment when the type of bottle is changed. According to the diameter of bottle, you could change corresponding nylon elements such as arc slipper guide, thumb wheel etc.
4. Those stainless steel bottle nips of wash are designed especially and are solid and durable. It does not touch thread position of phialine, in order to avoid the second pollution.
5. All parts directly contacted with material are adopted with food stage stainless steel without dead angle. So they can be cleaned easily.
6. It can keep the slight turbulence of liquids level in the solution barrel and ensure the accuracy in filling.
7. The opening valve mechanism is driven by the cylinder. According to the bottle signal, it opens timely, exactly and reliably.
8. High filling speed and mass flow rate, high precision of filling valve and control of liquids level is accurate and without loss.
Components of the machine:
There are three main parts of this machine:
Bottle rinser, Filler and Capping machine
1) Bottle rinsing part: 18 washing heads
Gripper Spraying valves Rinsing part drawing
2) Filling part: 18 heads
Filling Valves Filling part drawing
The filling part is made up of main liquid pipe, rotating cylinder bearing base, filling cylinder fulcrum loop, carbonated beverage and beer tank, filling valve, filling cylinder pipe, control loop device, ascending device, the distributor, height adjusting control, stimulating bubble arm, vacuum system, etc.
3) Capping part: 6 heads
The capping machine is made up of cap holder, capping slide way, capping upper part, capping lower part, elevating part and anti-circling column.
4) Automatic PLC touch Screen Control System
SIEMEN Brand PLC control system as below pcitures:
