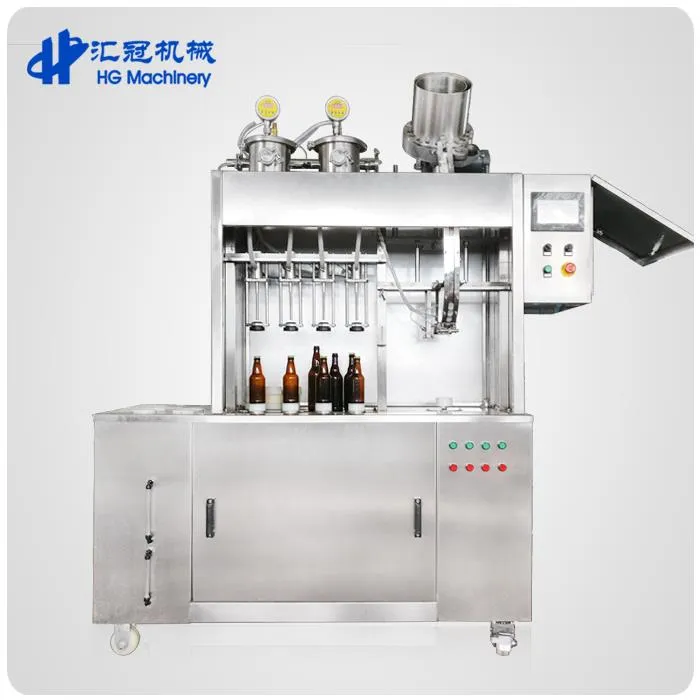

Semi-auto Beer Bottle Rinsing&Filling&Capping Machine 4-4-1

Semi-auto Beer Bottle Rinsing&Filling&Capping Machine 4-4-1

This 4-4-1 bottle filling machine is with 4 heads rinsing,4heads bottling and 1head capping ,and it's a rinsing-filling-capping 3 in 1 machine. Main parts of theis machine: Automatic electronic control filling valve, vacuum, preparation of pressure(CO2),the photoelectric liquid level detection, automatic filling process,CIP cleaning system, bottle deformation pieces, ware resistant parts.
Chat Now

Product Details


Item

Parameters

Rinsing heads

4

Filling heads

4

Capping heads

1

Rated capacity

300-500BPH

Suitable bottle type

Bottle height: 150300mm

Bottle diameter:Φ50Φ85mm

Sterile air consumption

0. 2 m3/min(0.40.6Mpa)

CO2 consumption

260g/100L

Vacuum pump

0.2 m3/h

Control voltage DC

24V

Water

0.5-1T

Power

1KW

Hopper motor: 0 .18KW

Vacuum pump motor: 0.37 KW (the user prepares)

Rinsing pump motor: 0.37KW (the user prepares)

Dimensions

1550×550×1750  (length×wide×high)

Weight

180Kg
