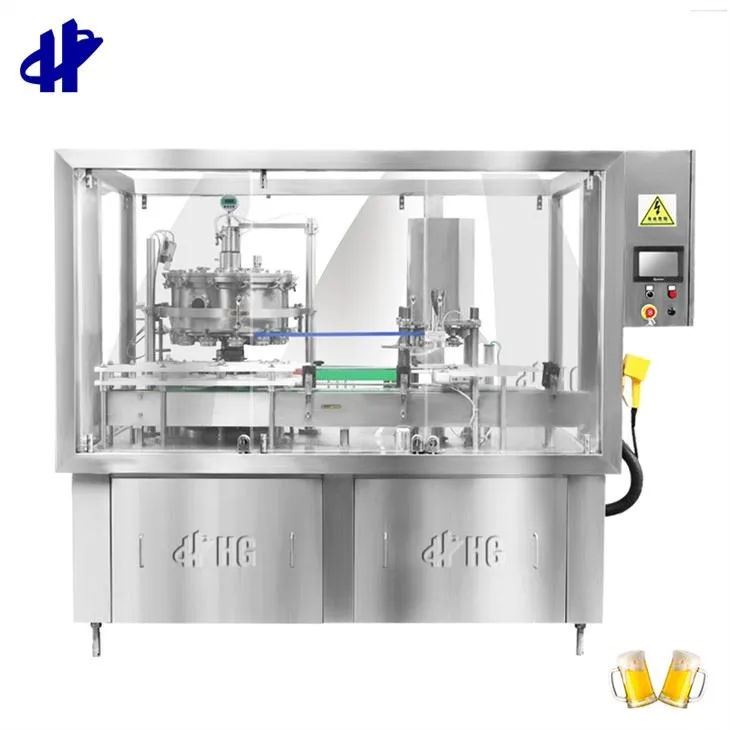

12-1 Can Filling Machine Can Filling Sealing Production Line Equipment

12-1 Can Filling Machine Can Filling Sealing Production Line Equipment

This 12-1 type fully automatic canning machine is special designed for medium or large capacity breweries. It adopts counter pressure filling principle. It has advantages of fast filling speed, high precision in liquid level and it only starts filling when there is a can, otherwise it will not fill.working is reliable.
Chat Now

Product Details

This 12-1 type fully automatic canning machine is special designed for medium or large capacity breweries. It adopts counter pressure filling principle. It has advantages of fast filling speed, high precision in liquid level and it only starts filling when there is a can, otherwise it will not fill.working is reliable.

beer bottle filling machine

Model

HG-GZ-12-1

Capacity

2000cans/h

Can size

Height:120~180mm,  Diameter:Ø50~Ø85mm

Sterileair consumption

0.2m3/min(0.4~0.6Mpa)

CO2 consumption

260g/100L

Aeration

25-35

Filling temperature

<40C

Power

2.8KW

Overall size

2150*1300*1900mm

Weight

1500Kg

Advantage

Features:

- Accurate filling, good sealing performance, no liquid loss, adjustable torque, suitable for all kinds of bottle caps.

- Filling valve adopts high precision mechanical filling valve, no bottle, no vacuum mechanism.

- External mechanical valve construction, no spring and seal in the body.

- Has two vacuum pumping capacities and is equipped with a high pressure foaming unit.

- The drive USES an open gear and gearbox combination drive.

- Adopting variable frequency stepless speed regulation with large speed range.

- The driving device of the filling machine is equipped with automatic grease lubrication device, which can supply oil to each lubricating point regularly.High transmission efficiency, low noise, long service life.

beer can filler

Our company

We can provide you with the complete and satisfied production process. Now, we are cooperating with Shandong Light Industry Design Institute to do reasearch and develop the new technologies.  we can  communicate and test the latest research results and beer recipes together.beer filling line

Engineer team:

We have a professional team of engineers, our technical engineers have more than ten years of work experience.They are very proficient in beer equipment and filling equipment. We could provide CAXA drawing of every tank and drawing the 3D layout of the whole project according with customer's workshop From designing beer equipment to dealing with after-sales problem, we can provide you with quality service.


We will provide you with excellent after-sales service.

The filling machine guarantees the quality for 1 year, the tank guarantees the quality for 3 years.

We provide 24 hours after sales service, if there is any problem with the equipment, you can directly contact our sales staff.We can solve the problem for you through email, online contact or video software.

We can also provide technical engineers on-site after-sales service.


If you are interested in our products, just feel free to contact us.
