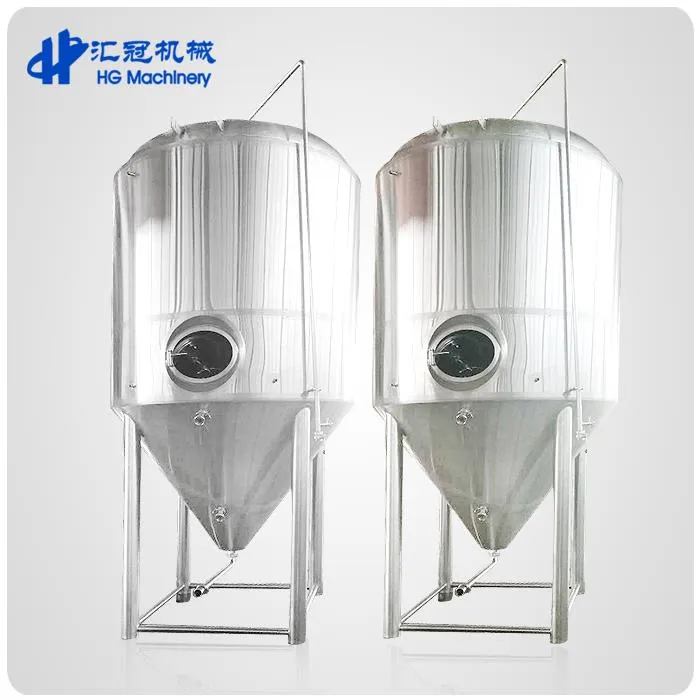

30 BBL Fermenter
Gross capacity: 37BBL,
Useful capacity: 30BBL.
Outline size: φ1860×3600mm
This type of tank can meet the needs of beer fermentation, including traditional fermentation, ie, pre-fermentation, post-fermentation and storage, wine storage/sake cans, production and sales. This product is made of high quality stainless steel 304 material, in line with international and domestic food safety and hygiene standards. Hygienic pipeline fittings are used for material in and out, and the pipeline connection method adopts quick installation connection, which is convenient for cleaning, maintenance and maintenance in production. The cleaning method is cyclic cleaning using a moving pump and a sanitary hose.
1. Cover the top and bottom. Honeycomb jacket cooling and polyurethane insulation
2. Inner surface: mirror polished Appearance: mirror finish
3. Structure: three layers (honeycomb sandwich; insulation; insulation)
4. Top: CIP cleaning ball; safety valve; inlet & spare hole;
5. Tank: liquid level gauge; inner opening hole; thermometer; pressure gauge; sampling valve
6. Bottom: center outlet; carbon dioxide filling device; adjustable feet; can be customized according to customer's special requirements
7. Material thickness can be customized according to customer requirements
* Good abrasion resistance material
External-Jacket thickness: 2.0mm
Seal head thickness: 3.0mm
* High quality insulation effect
Polyurethane thickness: 80mm
* Beautiful weld and polish technology
All argon gas protection welding. Polishing precision up to Ra0.6µm.
* Powerful technology supporting
Providing drawing of every tank and drawing the layout of the whole project according with
* World’s top brands’ electronic components
For example, we use Siemens PLC and touch screen, Schneider button of circuit breaker, Airtac electromagnetic valves and other pneumatic parts, etc.
* CE certificate and UL certificate
All our products can pass CE certificate. If you need, we can also apply the UL certificate for you.
* Good aftersales service
Providing abroad installation and training and providing 1 year spare parts in free of charges
