The equipment list includes the detailed equipment description and accessories.

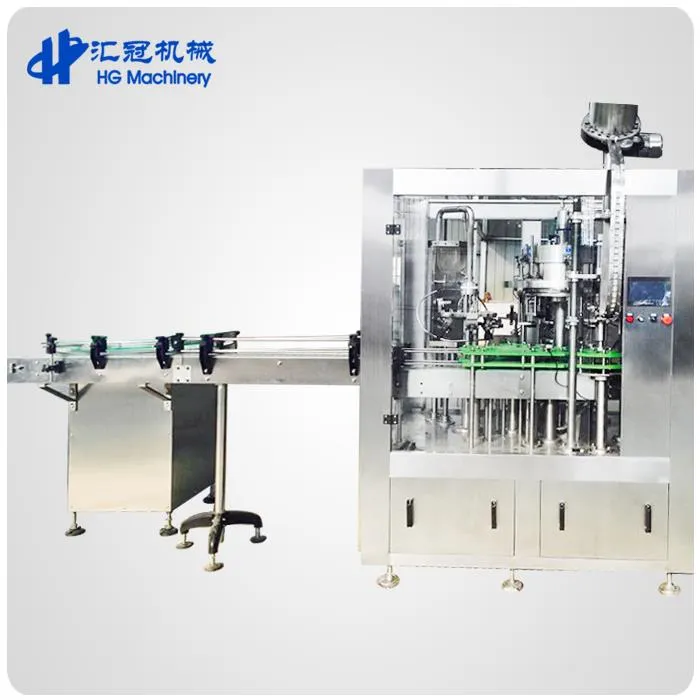

1. The 4-1 type fully automatic canning machine
This 4-1 type fully automatic canning machine is special designed for medium capacity brewery/brew pubs. It’s easy operating with high efficiency.
The working flow includes CO2 purge, filling and then sealing the caps. All-in-one filling method design, the working is reliable.
Technical parameters
Model | HG-LGF-4-1 |
Filling nozzle | 4 |
Sealing nozzle | 1 |
700 CPH | |
0.55kw | |
Maximum filling pressure | 0.3Mpa |
Filling temperature | <4°C |
Compressed Air consumption | 0.1m3/min(0.4～0.6Mpa) |
CO2 consumption | 160g/100L |
Can neck | Φ52～Φ90mm |
Can height | 105～240mm |
Machine size | 1260mm*600mm*1650mm |
Weight | 310KG |
The sealing part for checking
The machine drawing for checking:
