8-8-3 Fully automatic beer bottle filling machine
1. Rotary Worktable
It is used for sorting the bottles before filling
Dimension: φ900*1100mm
Material: Stainless steel 304

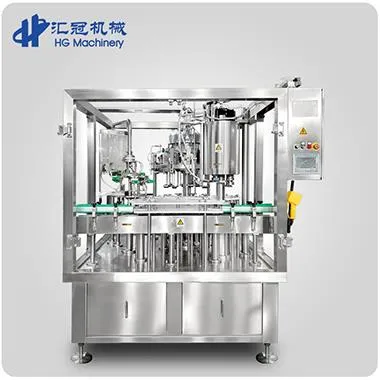

02. Fully automatic beer rinser, filler and capper
HG-CGF8/8/3 type bottle washing filling capping monoblock is designed combined with the actual situation in our country after the introduction and absorption that comes from Germany technologies.
It adopts isobaric filling principle and filling valve adopts high precision mechanical valve. It has advantages of fast filling speed, high precision in liquid level. Adopt Siemens automatic controlling system, realizing trinity of the machines, and control the washing, filling and capping process.
Item | Parameters | Item | Parameters |
Washing heads | 8 | Vacuum pump | 0. 20m3/h |
Filling heads | 8 | Power | main motor: 1.5KW hopper motor: 0 .18KW vacuum pump motor: 1.1 KW chain motor: 0.75KW |
Capping heads | 3 | Dimensions | 1800×1600×2550(L*W*H) |
Capacity | 1000-1500BPH (330ml and 500ml bottles) | N.W. | 1800Kg |
Bottle type | height：150~ 300mm bottle neck：①50~①85mm bottle diameter: 50-75mm | Working voltage AC | It can be customized by the customers’ electrical conditions. |
Air consumption | 0.15m3/min(0.4～0.6Mpa) | Control voltage DC | It can be customized by the customers’ electrical conditions. |
CO2consumption | 1.6kg/l000L | Frequency converter | SIEMEMS |
Water consumption | 0. 8m3/h | PLC | SIEMEMS |
Touch screen | SIEMEMS | Pneumatic element | SMC |
There are 4 main features of 8-8-3 beer glass bottle filling machine.
1. Twice rinsing bottles. One way is rinsing bottles by disinfectant water; and another way is rinsing by clean water. Through these two ways, it will ensure your bottles cleaning and then ensure quality of beer.
2. The outer beer valves. Reduce the oxygen content of beer and the pollution chance of beer in the beer tank. It also can make sure the quality of beer.
3. Twice evacuation, long shelf life. Adopt vacuumization and CO2 preparing pressure principal, and then prepare pressure for a second time to make sure the filling quality.
4. Full mechanical drive instead of pneumatic for capping part. It will effective to make the caper running more stable.
Any request about this new filler, please keep me posted. Thank you for your time and looking forward to your reply.
