Cooling way: Dimple jacket cooling;
Cooling media: glycol water or alcohol water.
Material: Inner (SUS304)thickness: 3.0mm;
External-Jacket(SUS304) thickness: 2.0mm;
Oval head cone bottom, thickness: 3.0mm.
Insulation: Polyurethane-thickness: 80mm.
Equipped with dry hop adding hole(with 2L tank)
Equipped with: 60° conical design
Sampling method: 1 piece of aseptic sampling valve.
Side manhole: 330*430mm
Polishing precision up to Ra0.4µm.
Fermentation tank pressure:
Design pressure 0.3MPa;
Working pressure 0.3Mpa.
Cleaning System: CIP washing unit:
Foot bolt: Adjust the height of the equipment, easy to install

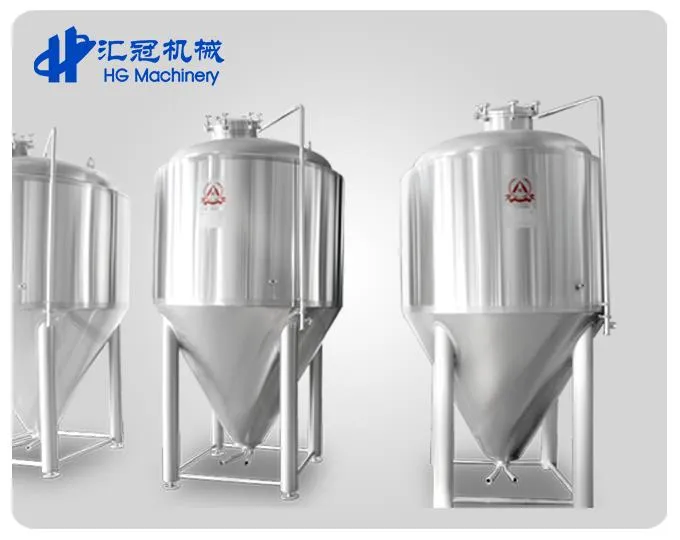

1. It use dimple jacket on the cylinder and lower cone. It can increase the connect area of ice and tank and can make the fermenter cooling down faster. The cooling media is glycol water. It will not freeze even at 0℃.
2. All of the welded and polished are done with beautiful weld. Our workers all have welder license.
The legs are averagely welding by fish-scale pattern and the weld is beautiful.
3. The inner of the tank is made of dimple, it can increase the contact area of ice water with the tank to cool the fermenter much faster.
4. All of the tanks must be hydrostatically (0.2-0.3Mpa) tested before leaving the factory to ensure the pressure resistance of the tank.
5.Mechanical pressure regulator is better for pressure sensitivity and can effectively control the pressure of the fermentation tank. The pressure gauge is PSI.
6. All of our tanks use stainless steel SUS 304, which is from Shanxi Taigang or Korea Posco. It has a very good corrosion resistance and can maintain the taste of the beer.
Our stainless steel material are all in line with international standard. The content of Ni is 8.47±0.21, the content of Cr is 18.01±0.36, it meets the stainless steel range requirement.
7. Beer outlet and drain outlet
1. The main equipment is guaranteed for 36 months and the electronic component is 12 months. If any parts go wrong during the warranty period, we provide you to exchange for free.
2. Before delivery all of our equipment will have a pressure testing connected with pipe. Welcome to our factory for inspection. We also can take a video of testing for you review.
3. We have professional engineers in overseas service, which can serve in you factory or train your workers.
