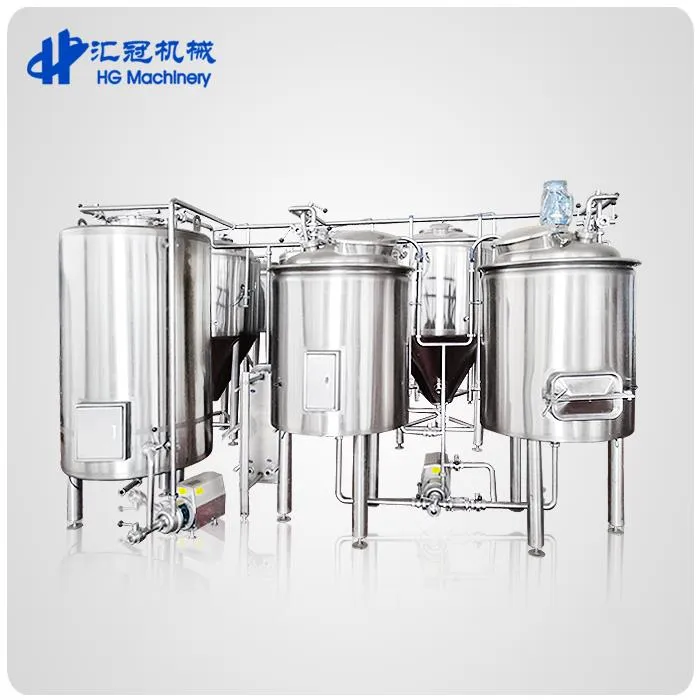

Brewing pub equipment
| Effective volume: 500L | Total Volume: 650L |
| Inner jacket thickness:3.00mm | External-Jacket thickness: 2.0mm |
| Three vessels:mash tank, lauter tank, boiling/whirlpool tank | Raker :can lift and decline spent grain out automaticly |
| Heating way: Steam heating | Sieve plate: Milling sieve plate |
| The precision of polishing can up to Ra0.4µm | Heating area: 2㎡ |
| Glass manhole, 375mm | Equipped with auger |
Fermentation system
| Cooling way: Dimple jacket | Heat exchange area: 2㎡ |
| side manhole: 330*430mm | Cooling media: glycol water or alcohol water |
| External-Jacket(SUS304) thickness: 2.0mm | Mechanical pressure regulator |
| Total volume: 500L | useful volume:650L |
| Design pressure 0.3MPa | Working pressure 0.3Mpa |
| Side manhole: | 330*450mm |
Refrigeration system
Controlling system
The details
Our product is used the most advance polishing technology--sand polish. The polishing precision to Ra0.4µm. The surface is polished for 3 times. All welding are used argon gas protection welding. It will help to reduce the oxygenation and protect the joint. Our welders has many years experience in welding and they adopt the most popular welding way--T.I.G welding.
Company Introduction:
Introducing European advanced technology and innovate on the technology, HG company becomes leader in domestic liquid package machinery industry and the most professional supplier for liquid production and package turnkey project. The location is superior, and the transportation conditions are convenient for visitors from all over the world.
Certifications:
Pre-Service:
-Layout:Sent us your building floor plan, or the sketch, or tell us the size (length, width, height), we will offer you an equipment footprint according to your requirement.
-Technical Drawings and 3D effective sketch also can be offered if customers' requirements.
After Sale Service:
We guarantee the quality of the electrical elements within one year and tanks body within 1 years. If the electrical elements go wrong without artificial factors within one year, we will freely provide them or maintain them for you.
After warranty, if you need to change parts, we will kindly provide you with the best price or maintain it in your site.
Meanwhile, if you have any technical questions, we will freely do our best to support.
FAQ
Q: How could we confirm the details of the products?
A: We will provide all the drawings for you to confirm before production.
Q: How long the warranty will be?
A: 3 years warranty for the whole tank and the main equipment, 1 year for the accessories and auxiliaries.
Q: How about the installation?
A: We can supply the installation. There are two options. The first option: We could appoint our engineer to your company to
debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side.
The second option: On-line service will be provided.
