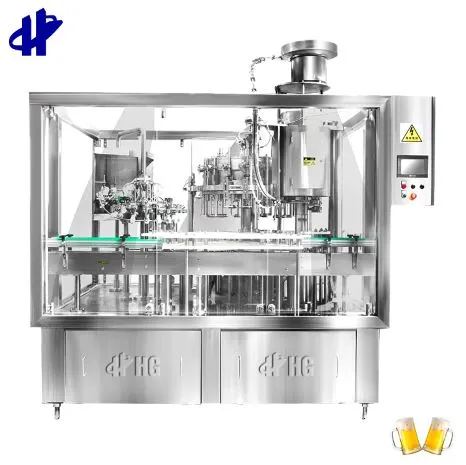

18 Washing Heads Filling Machine For Beer Bottle Line

of the glass bottles. The nozzle is a plum-like structure can wash every corner of the sidewall and bottom to make the
bottle clean.

2, Filling machine with spring-type mechanical lifting equipment to upgrade glass bottles, large bearing support
floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features.

3, Using high-precision mechanical filling valve, with cylinder liquid level and the back pressure controlled by a variable
signal proportional. Fast, stable, accurate, to be vacuum one at a time.

4, Stainless steel plunger and mechanical stirring gland-type magnetic reasonable cap to ensure that the gland is healthy
and reliable. Hopper and the cap taking- cover, capping transmitted by magnetic. The capping is reliable and automatic
unloading, reducing the rate of broken bottles.

5, Before the capping, use hot water bubble set to displace bottlenecks air, ensuring the oxygen content of less than
0.15mg / L.

6, Filling machines includes broken bottle automatically stopping valve, broken bottle washing, and foam automatically
exhausting device.

7, With perfect CIP cleaning function, and capable of rinsing filling pipes with acid, lye liquid and hot water.

8,All the materials in contact with the valves, tanks, pipes are made of stainless steel 304 materials, inside and outside
the wall of mirror-polished, ensuring it is healthy.

9, Manually dry oil lubrication system to make sure equipment maintenance is more convenient.

10, The whole operation adopts advanced man-machine interface, PLC control, frequency conversion stepless speed
regulation and other automatic control technology, with no bottle no open valves, no stamps; no cap no operation, and

other security protection.

After Service

We guarantee the quality of the machine within 1 year.
After warranty, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question inusing it, we will freely do our best to support
We can also dispatch our engineer to your brewery to install and adjust the machines for you. He can also train your staff to use the equipment
