Candle Type Diatomite Filter Machine
1. Introduction
Candle type diatomite filter machine is designed combined with the actual situation in our country after the introduction and absorption from abroad. It is widely used in the filtration of beer industry, beverage industry, juice industry, seasoning, pharmaceutical industry, chemical product and so on. It is made of stainless steel. Simple process, large filter area, high production efficiency, little loss of material.
2. Main structure

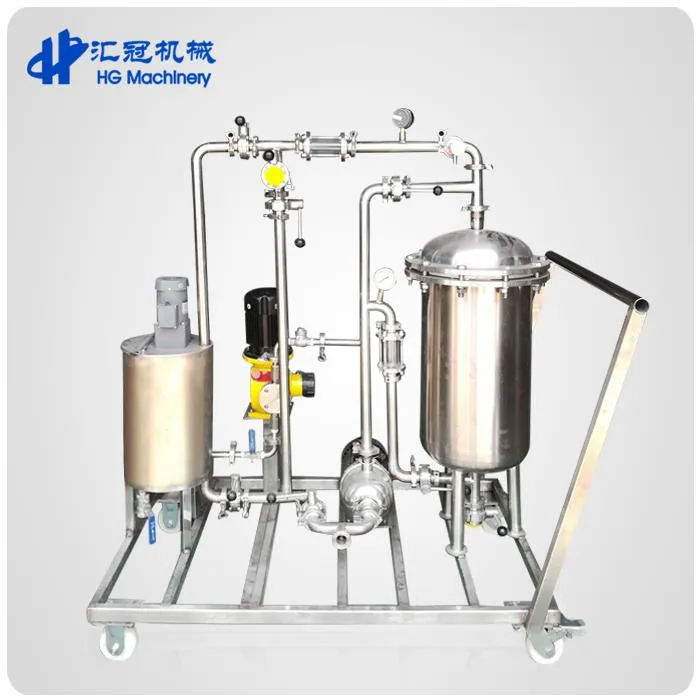

Diatomite filter machine is composed of four parts: main machine, mixing tank, mixing pump and measurement pump. Main machine is made up of three parts: machine frame, filter cartridge, hold-down mechanism, etc.
3. Application
Beer, Syrup, beverage, chemical and biological industries.
4. Filter principle
The system, adopting diatomite as medium and supported by filter candle sticks with special constructions, is a kind of filter system which makes the diatomite covering filter candle sticks and forms a filter layer. This type of machine contains front buffer equipment, main machine, back buffer equipment, cold coffee reclaim, recovery device, fine filter, etc.
5. Technology parameter
No. | Item | Parameter |
1 | Model | ZTG-0.5 |
2 | Filtering capacity | 0.5T per hour |
3 | Filtering area | 1 m2 |
4 | Power | 0.79kw |
5 | Overall size | 1700*800*1900mm |
6 | Gross weight | 400kg |
NO. | Name | Quantity | locality | Remark |
1 | The reduction gear | 1set | Shanghai | Weifang,Changzhou |
2 | Metering pump | 1set | Heiniu pumps, shanghai | |
3 | Centrifugal pump | 1set | Heiniu pumps, shanghai | |
4 | safety valve | 1set | Shanghai | Yuanan, shanghai |
5 | Cleaning motor | 1set | Motor，Wannan | |
6 | Filter machine | 1set | HG | Bright inner and outside |
7 | Stirring the mixture system | 1set | HG | Bright inner and outside |
8 | Filter stick | HG | 304 | |
9 | control cabinet | 1set | HG | Domestic high quality part |
10 | Pipe | 1suit | Shanghai | Bright inner and outside Hygienic level |
11 | Valve | 1suit | Shanghai | Hygienic level |
12 | Meter | 1suit | Zhejiang | Yimei,Zhejiang |
13 | blowdown valve | 1set | Zhejiang | Yuanan, shanghai |
14 | Sealing | 1suit | HG | Silica gel |
15 | Filter tank | 1 piece | HG | HG |
16 | tank | 1 piece | HG | Bright inner and outside Hygienic level |
17 | pipeline | HG | 304 | |
18 | Measuring pump | 1 piece | Shanghai | Shanghai |
19 | Multistage pump | 1 piece | South pump | |
20 | flow meter | 1 piece | Tianjin | Fudesi, Tianjin |
Any one who are looking for this machine, please tell me freely, I will try, my best to offer you.
Cheers!
