2 Vessel Brewhouse

Mash/Lauter Tun + Boil Kettle/Whirlpool Tun

Mash/Lauter Tun/Hot Liquor Tank Combi vessel + Boil Kettle/Whirlpool Tun

Mash/Lauter Tun + Boil Kettle/Whirlpool + Hot Liquor Tank

3 Vessel Brewhouses

Mash/Lauter Tun + Boil Kettle + Whirlpool Tun

Mash(kettle) Tun + Lauter Tun + Boil Kettle/Whirlpool Tun

4 Vessel Brewhouses

Mash(kettle) Tun + Lauter Tun + Boil Kettle + Whirlpool

5 Vessel Brewhouses

Mash Tun + Lauter Tun + Boil Kettle + Whirlpool+ Holding Kettle

Fermentation Unit

100% TIG welding with pure argon gas shield

Interior Finish: Overall polishing to 0.2~0.4 μm without dead corner

Insulation: Polyurethane; TH=80mm

Glycol Jacket: Dimpled plate on cone and side

Stringent tank leakage test by water and pressured gas

Stringent Jacket leakage test by water and pressured gas

Dished head and 60 degree cone bottom

Sanitary side mounted manway

CIP arm with 360° coverage CIP spraying ball

CO2 blow-off arm with butterfly valve

Full sanitary sampling valve

Mechanical relief valve 2 bar on CIP arm

Shockproof pressure gauge on CIP arm

Rotating racking arm and port on cone with butterfly valve

Bright Tank Unit

Standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation

Single size as fermenter is common used in restaurant or bar

Tanks quantity is exactly calculated for various beers and the function

All manhole, valves, stone, gauges, fittings etc are included

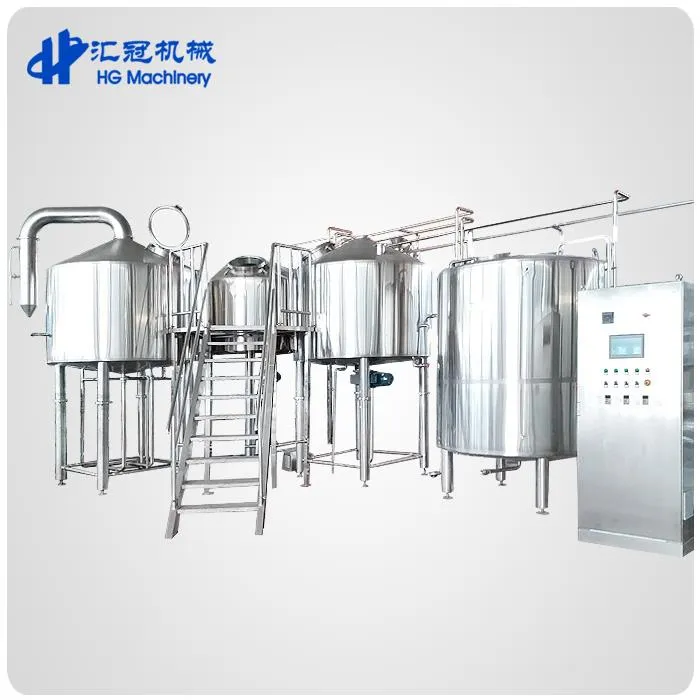

20bbl Brewing Equipment
