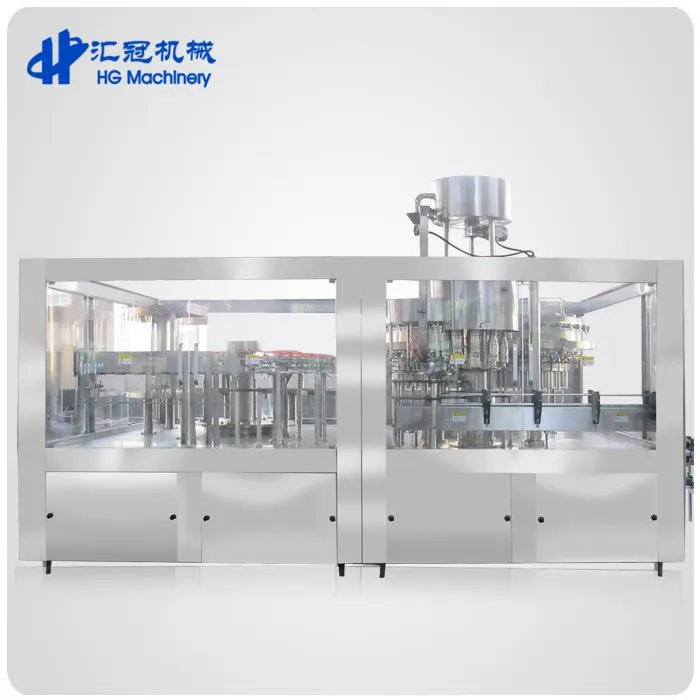

Soda Water Filler

Soda Water Filler

Soda water filler adopts PLC computer program control and human-machine interface touch screen button, which has automatic control of liquid level in material cylinder, no bottle is not filled and there is a bottled wheel card bottle misplaced shutdown, cover chute the function of shutting down the cover and other
Chat Now

Product Details

Product Description:

Soda water filler is used in the production of various pure water, mineral water and soda water in polyester bottles. It can realize bottle washing, filling and capping on one machine. Soda water filler adopts PLC computer program control and human-machine interface touch screen button, which has automatic control of liquid level in material cylinder, no bottle is not filled and there is a bottled wheel card bottle misplaced shutdown, cover chute the function of shutting down the cover and other functions.

Features:

1. The design of the soda water filler is scientific and reasonable, the appearance is beautiful, the function is complete, the operation and maintenance are convenient, and the automation degree is high.

2. Comprehensive adoption of international advanced technology, fast filling speed and stable liquid level control.

3. It is sent to the bottle by the wind, and is not restricted by the height of the bottle. As long as the bottle mouth and the bottle cap are the same, the bottle shape can be changed at will.

4. Oil nylon gear transmission, low noise, stable operation of the whole machine.

5. The magnetic torque type capping head is used to realize the function of gripping and screwing.

6. The capping torque is steplessly adjustable, and has the function of constant torque screwing and capping, and the sealing is strict and reliable.

7. The horizontal rotary pneumatic capper has the functions of not damaging the surface of the cap, and automatically replacing the cap in the hopper.

CSD filling machinecarbonated beverage filler

automatic filling machineautomatic filling machine

Accessory:

Syrup boiler:


It could completely finish the work such as syrup boil, cool, mixing and storage in one body.




soda water filler
soda water filling machine

Mixing tank:


Made of super stainless steel, it is an assistant part for carbonation water and wine on beverage filling line. It is used to mix syrup and other kind of liquid.

Syrup filter:


It is suitable for removing the solid matter from fresh milk, syrup, beverages and any liquid. Two filters can change using each other, and it is not necessary to stop the machine as you change the filter net.





packing line
automatic CSD/CO2 drink gas water soda carbonated soft drink glass bottle cold filler/filling machine

Water chiller:


Cold beverage tank is adopted chiller to work out the old water. it is accessory devices for making soda water, sparkling wine.

Adopts chilling liquid is F-12, safe to use, and installed pressure automatic controller, machine runs well and easy to operate.


Carbonator:


As the main equipment in whole beverage production line, it is used for carbonation and proportion mixing of syrup and CO2, in producing carbonated beverages.

Before adding CO2, the syrup needs to be vacuumed and chilled. This machine can make the syrup the CO2 ratio 6g/L.

soda water filling machine
